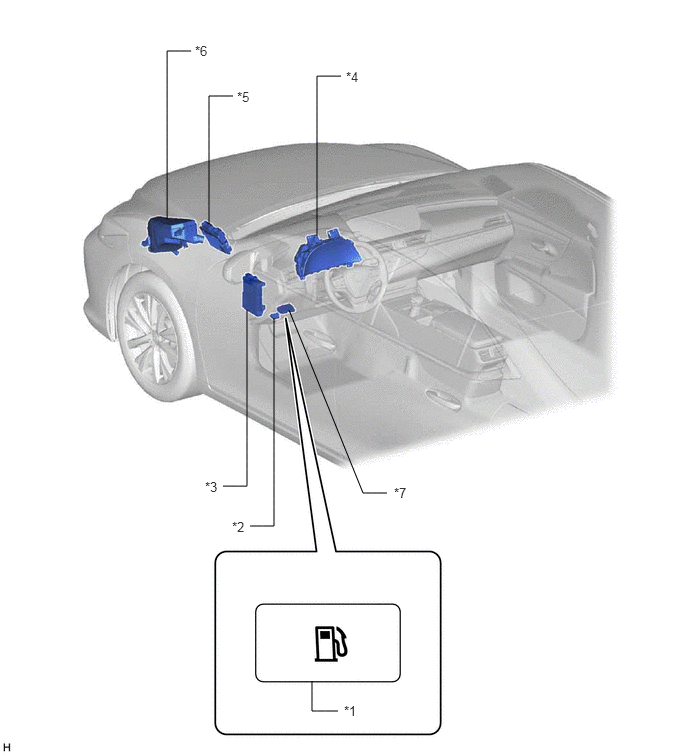

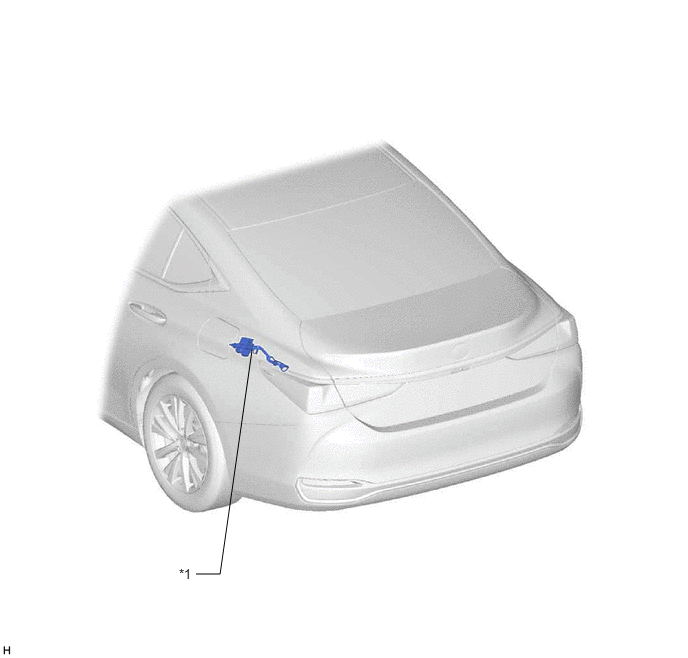

Parts Location [06/2018 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | FUEL LID OPENER SWITCH | *2 | DLC3 |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - FUEL OPN RELAY |
*4 | COMBINATION METER ASSEMBLY |
| *5 | ECM | *6 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI NO. 1 FUSE - FUEL OPN FUSE - EFI-MAIN NO. 1 FUSE - EFI-MAIN NO. 1 RELAY |
| *7 | TRUNK AND FUEL SWITCH ASSEMBLY | - | - |
