Parts Location [06/2018 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

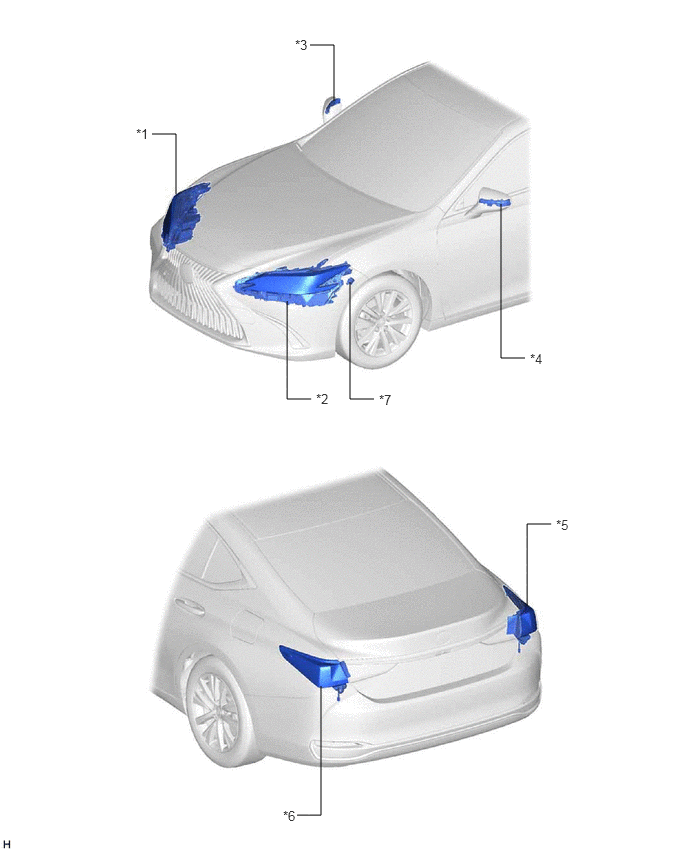

| *1 | HEADLIGHT ASSEMBLY RH - TURN SIGNAL LIGHT |
*2 | HEADLIGHT ASSEMBLY LH - TURN SIGNAL LIGHT |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY RH - TURN SIGNAL LIGHT |
*6 | REAR COMBINATION LIGHT ASSEMBLY LH - TURN SIGNAL LIGHT |
| *7 | WIRELESS DOOR LOCK BUZZER | - | - |

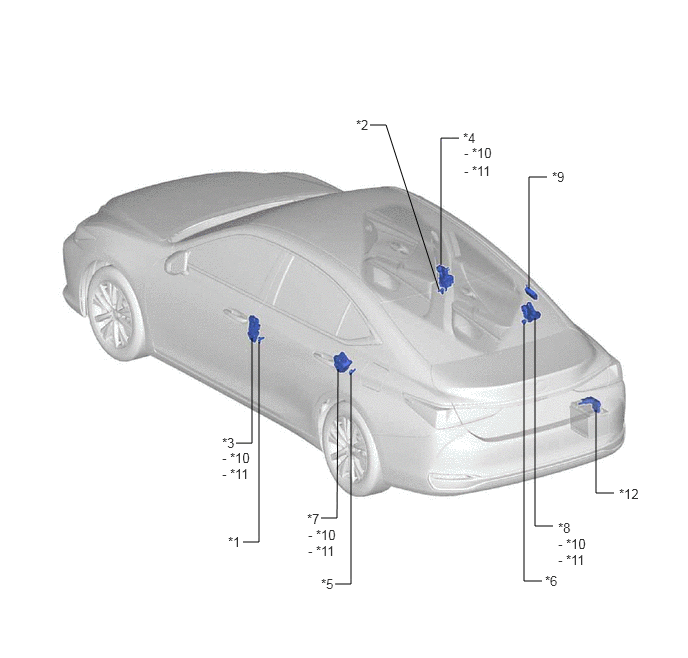

| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *3 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *5 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *7 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *8 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *9 | ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY | *10 | DOOR LOCK MOTOR |
| *11 | DOOR UNLOCK DETECTION SWITCH | *12 | FUSIBLE LINK BLOCK ASSEMBLY - ECU-B NO. 3 FUSE |
