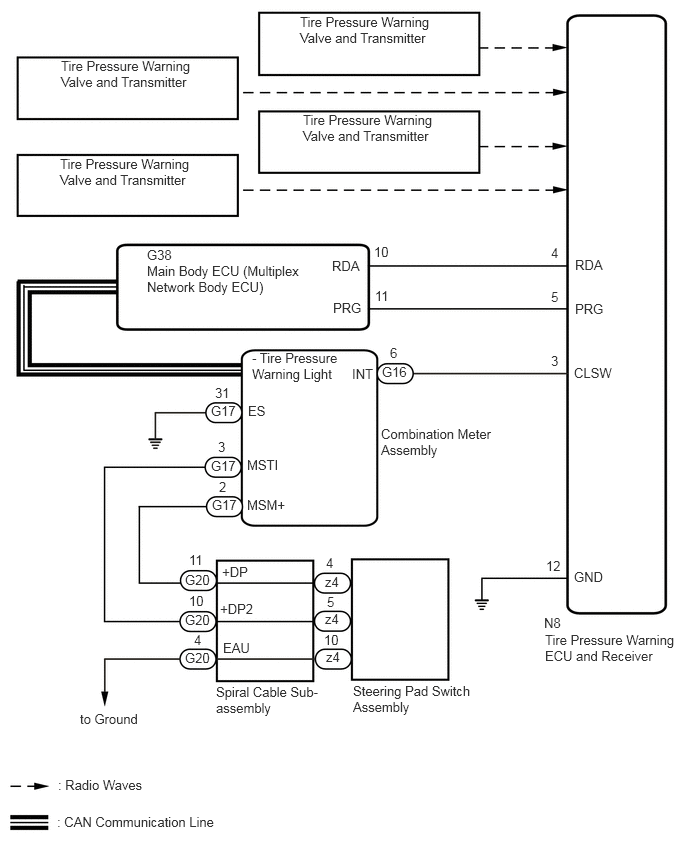

DTC C2111: Transmitter ID1 Operation Stop; DTC C2112: Transmitter ID2 Operation Stop; DTC C2113: Transmitter ID3 Operation Stop; DTC C2114: Transmitter ID4 Operation Stop [06/2018 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
