Rear Door Courtesy Switch Circuit [06/2018 - ]: Procedure
- READ VALUE USING TECHSTREAM
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Main Body / Data List.
- Read the Data List according to the display on the Techstream.
Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note RR Door Courtesy SW Rear door courtesy light switch assembly (for RH) signal OFF or ON OFF: Rear door RH closed
ON: Rear door RH open- RL Door Courtesy SW Rear door courtesy light switch assembly (for LH) signal OFF or ON OFF: Rear door LH closed
ON: Rear door LH open- Body Electrical > Main Body > Data List
Tester Display RR Door Courtesy SW RL Door Courtesy SW OK
Normal conditions listed above are displayed.
Result
Result Proceed to OK A NG ("RR Door Courtesy SW" is not normal) B NG ("RL Door Courtesy SW" is not normal) C
Result:
A
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [06/2018 - ]
Result:
C
See step 5
Result:
B
See step 2
- INSPECT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)
- Remove the rear door courtesy light switch assembly (for RH).
Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
- Inspect the rear door courtesy light switch assembly (for RH).
Refer to INSPECTION [06/2018 - ]
Result
Proceed to OK NG
Result:
NG
REPLACE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH). Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
Result:
OK
See step 3
- Remove the rear door courtesy light switch assembly (for RH).
- CHECK HARNESS AND CONNECTOR (REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)
- Disconnect the 3A instrument panel junction block assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition N6-1 - 3A-31 Always Below 1 Ω N6-1 or 3A-31 - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

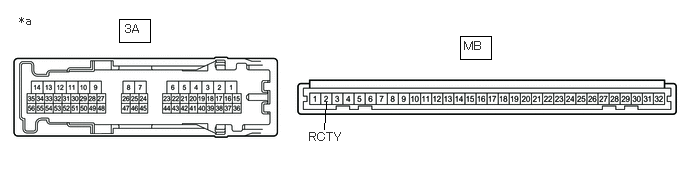

*a Component without harness connected (Instrument Panel Junction Block Assembly) - - - Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3A-31 - MB-2 (RCTY) Always Below 1 Ω Result
Proceed to OK NG
Result:
OK
REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
Result:
NG
REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
- Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
- INSPECT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)
- Remove the rear door courtesy light switch assembly (for LH).
Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
- Inspect the rear door courtesy light switch assembly (for LH).
Refer to INSPECTION [06/2018 - ]
Result
Proceed to OK NG
Result:
NG
REPLACE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH). Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
Result:
OK
See step 6
- Remove the rear door courtesy light switch assembly (for LH).
- CHECK HARNESS AND CONNECTOR (REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)
- Disconnect the 3H instrument panel junction block assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition N7-1 - 3H-24 Always Below 1 Ω N7-1 or 3H-24 - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 7
- INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
*a Component without harness connected (Instrument Panel Junction Block Assembly) - - - Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3H-24 - MB-13 (LCTY) Always Below 1 Ω Result
Proceed to OK NG
Result:
OK
REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
Result:
NG
REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
- Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
