Luggage Compartment Door Courtesy Switch Circuit [06/2018 - ]: Procedure
- READ VALUE USING TECHSTREAM
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Main Body / Data List.
- Read the Data List according to the display on the Techstream.
Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note Luggage Courtesy SW Luggage compartment door courtesy switch signal OFF or ON OFF: Luggage compartment door closed
ON: Luggage compartment door open- Body Electrical > Main Body > Data List
Tester Display Luggage Courtesy SW OK
Normal conditions listed above are displayed.
Result
Proceed to OK NG
Result:
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [06/2018 - ]
Result:
NG
See step 2
- INSPECT LUGGAGE COMPARTMENT DOOR COURTESY LIGHT SWITCH (LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY)
- Remove the luggage compartment door courtesy light switch (luggage compartment door lock assembly).
Refer to REMOVAL [06/2018 - ]
- Inspect the luggage compartment door courtesy light switch (luggage compartment door lock assembly).
Refer to INSPECTION [06/2018 - ]
Result
Proceed to OK NG
Result:
NG
REPLACE LUGGAGE COMPARTMENT DOOR COURTESY LIGHT SWITCH (LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY). Refer to REMOVAL [06/2018 - ]
Result:
OK
See step 3
- Remove the luggage compartment door courtesy light switch (luggage compartment door lock assembly).
- CHECK HARNESS AND CONNECTOR (LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY AND BODY GROUND)
- Disconnect the 3H instrument panel junction block assembly connector.
- Measure the resistance according to the value (s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition R17-3 (D+) - 3H-34 Always Below 1 Ω R17-3 (D+) or 3H-34 - Body ground Always 10 kΩ or higher R17-2 (E) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

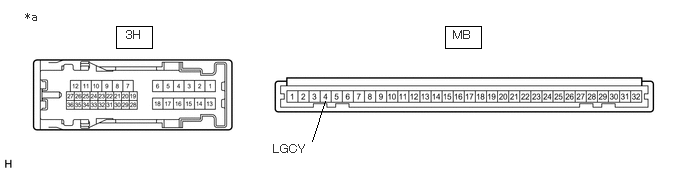

*a Component without harness connected
(Instrument Panel Junction Block Assembly)- - - Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3H-34 - MB-4 (LGCY) Always Below 1 Ω Result
Proceed to OK NG
Result:
OK
REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
Result:
NG
REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
- Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
