Interior Light Auto Cut Circuit [06/2018 - ]: Procedure
- PERFORM ACTIVE TEST USING TECHSTREAM
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Main Body / Active Test.
- Perform the Active Test according to the display on the Techstream.
Body Electrical > Main Body > Active Test
Tester Display Measurement Item Control Range Diagnostic Note Relay for Interior Light Auto Cut Function DOME CUT relay OFF or ON When performing this Active Test, turn all the interior lights on. - OFF: DOME CUT relay on (interior lights turn on)
- ON: DOME CUT relay off (interior lights turn off)
Body Electrical > Main Body > Active Test
Tester Display Relay for Interior Light Auto Cut Function OK
All of the interior lights turn off when ON is selected.
Result
Proceed to OK NG
Result:
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [06/2018 - ]
Result:
NG
See step 2
- CHECK HARNESS AND CONNECTOR (POWER SOURCE - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)
- Disconnect the 3K instrument panel junction block assembly connector.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition 3K-1 - Body ground Power switch off 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

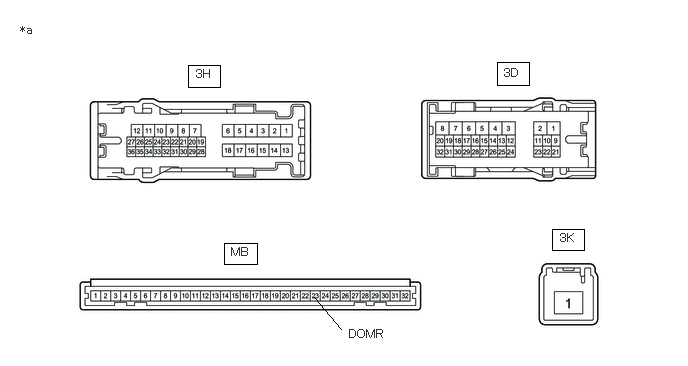

*a Component without harness connected
(Instrument Panel Junction Block Assembly)- - - Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition 3H-19 - Auxiliary battery negative (-) Auxiliary battery positive (+) → 3K-1
Auxiliary battery negative (-) → MB-23 (DOMR)11 to 14 V 3D-9 - Auxiliary battery negative (-) Auxiliary battery positive (+) → 3K-1
Auxiliary battery negative (-) → MB-23 (DOMR)11 to 14 V 3D-10 - Auxiliary battery negative (-) Auxiliary battery positive (+) → 3K-1
Auxiliary battery negative (-) → MB-23 (DOMR)11 to 14 V - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3K-1 - 3H-19 Always 10 kΩ or higher 3K-1 - 3D-9 Always 10 kΩ or higher 3K-1 - 3D-10 Always 10 kΩ or higher Result
Proceed to OK NG
Result:
OK
REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
Result:
NG
REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to REMOVAL [06/2018 - 08/2021] , or refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]
- Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
