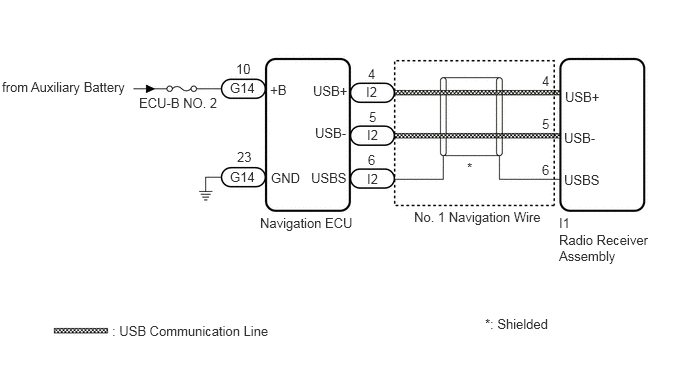

DTC B1543: Extension Module Disconnected 2 [06/2018 - 09/2022]: Wiring Diagram

WARNING: This page is about a different car, the 2022 Lexus ES 300h, 2021 Lexus ES 300h, 2020 Lexus ES 300h, and 2019 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
