DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [08/2021 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

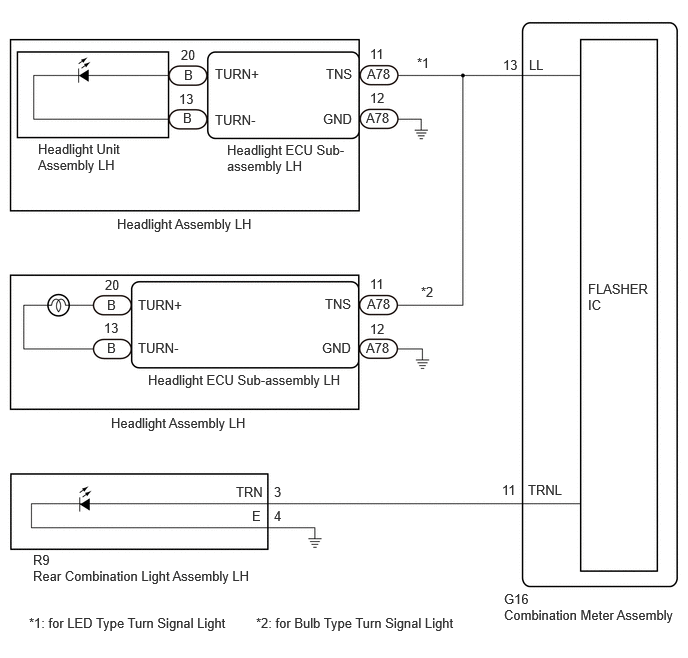

For LH Side

GTY1088146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

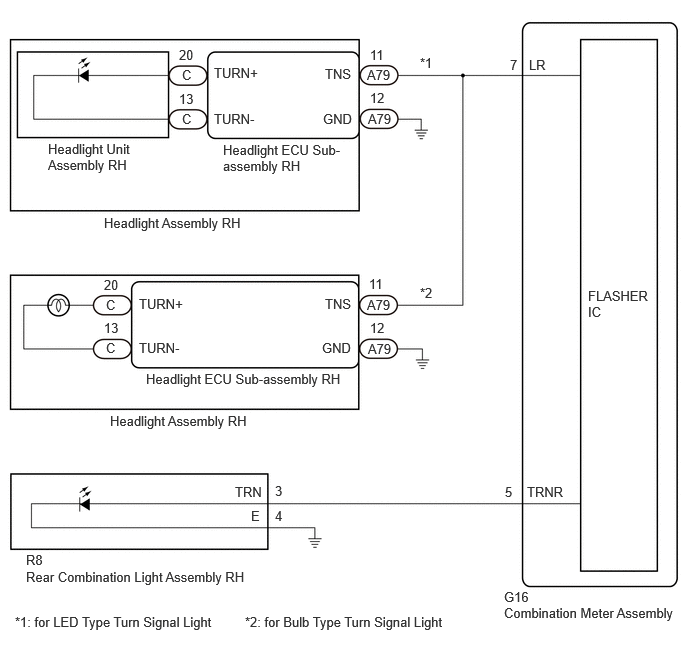

For RH Side

GTY1087878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
