DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [07/2019 - 10/2019]: Wiring Diagram
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
- LH SIDE

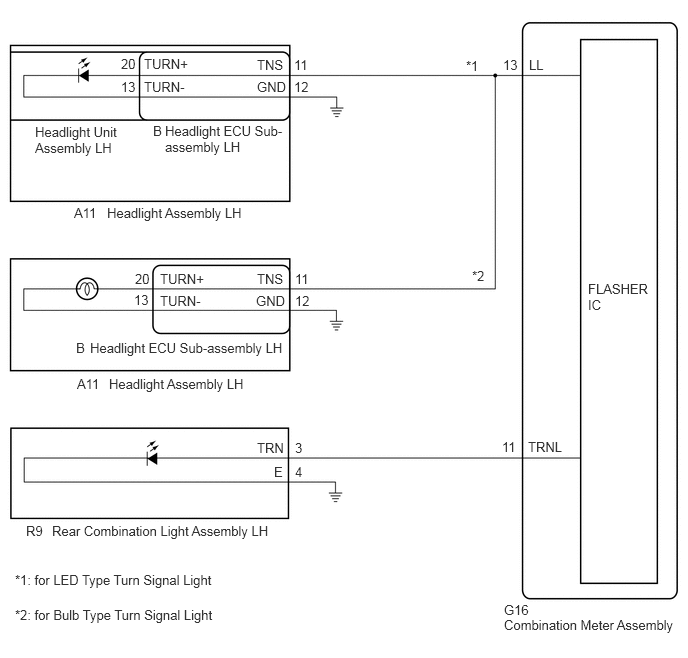

For TMC Made
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

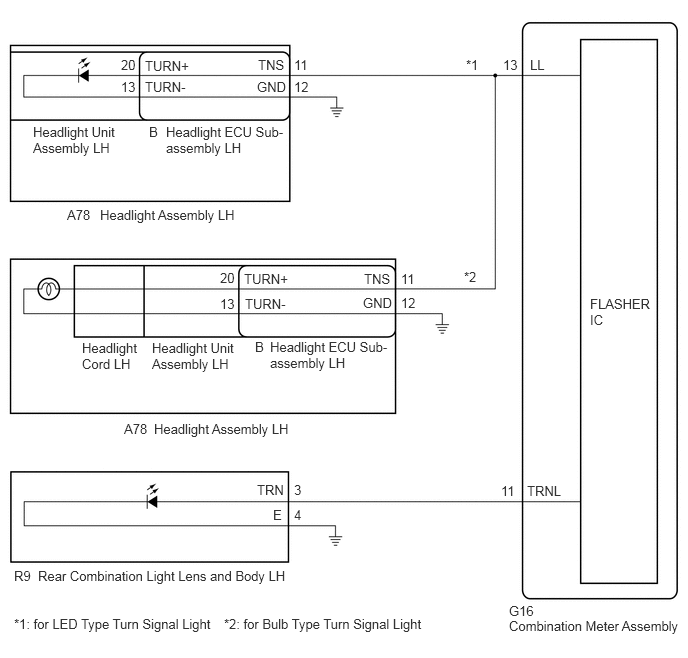

For TMMK Made Before Sep. 2019 Production
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
For TMMK Made From Sep. 2019 Production
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- RH SIDE

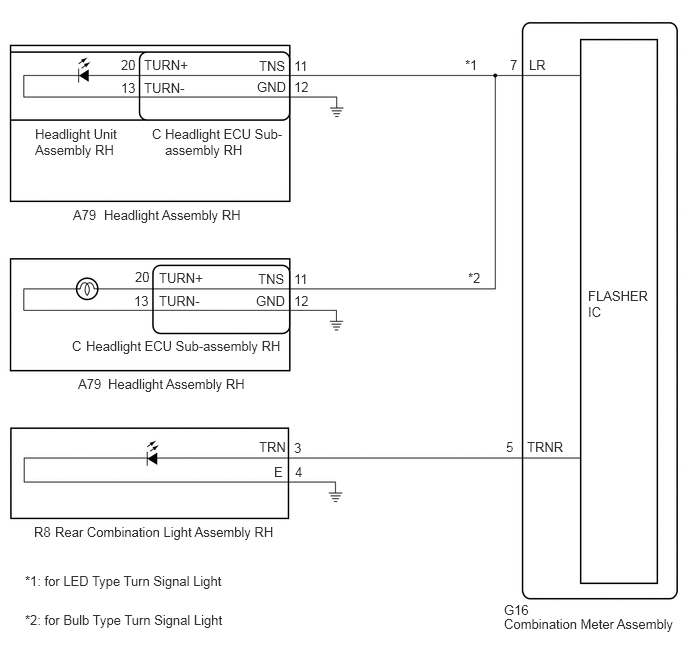

For TMC Made
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

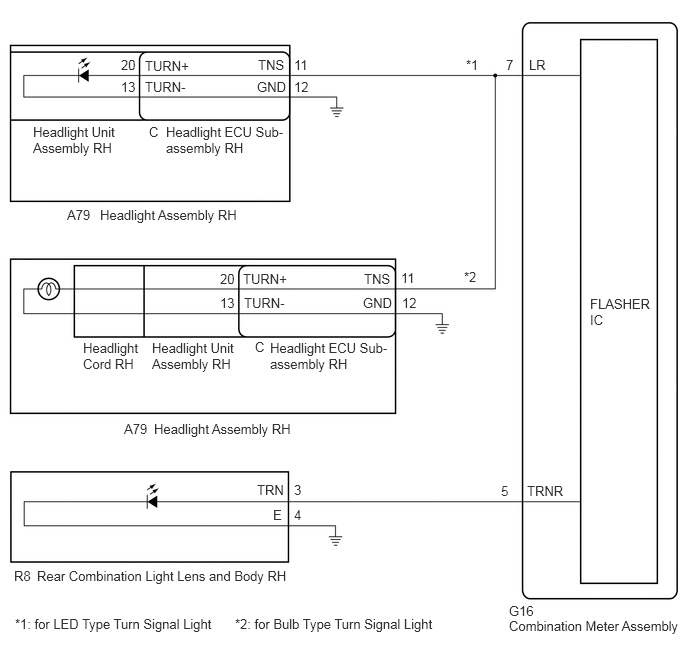

For TMMK Made Before Sep. 2019 Production
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
For TMMK Made From Sep. 2019 Production
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
