DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [07/2019 - 10/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT LIGHTS
    1. Inspect the illumination of each turn signal light.

      Result

      Result Proceed to
      Front turn signal light LH does not blink A
      Rear turn signal light LH does not blink B
      Front turn signal light RH does not blink C
      Rear turn signal light RH does not blink D

    Result:

    B

    See step  9

    Result:

    C

    See step  14

    Result:

    D

    See step  21

    Result:

    A

    See step  2

  2. CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the A11 headlight assembly LH connector.*1
    2. Disconnect the A78 headlight assembly LH connector.*2
    3. Disconnect the G16 combination meter assembly connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR TMMK MADE BEFORE SEP. 2019 PRODUCTION

      Tester Connection Condition Specified Condition
      A11-11 (TNS) - G16-13 (LL) Always Below 1 Ω
      A11-12 (GND) - Body ground Always Below 1 Ω
      FOR TMC MADE OR TMMK MADE FROM SEP. 2019 PRODUCTION

      Tester Connection Condition Specified Condition
      A78-11 (TNS) - G16-13 (LL) Always Below 1 Ω
      A78-12 (GND) - Body ground Always Below 1 Ω
      1. *1: for TMMK Made Before Sep. 2019 Production
      2. *2: for TMC Made or TMMK Made From Sep. 2019 Production

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. INSPECT HEADLIGHT ECU SUB-ASSEMBLY LH

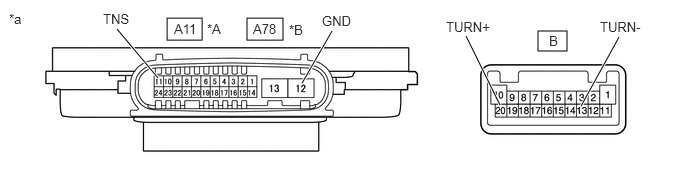

    GTY959321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    (Headlight ECU Sub-assembly LH)

    *A For TMMK Made Before Sep. 2019 Production *B For TMC Made or TMMK Made From Sep. 2019 Production
    *a Component without harness connected
    (Headlight ECU Sub-assembly LH)    		 - -
    1. Remove the headlight ECU sub-assembly LH.

      Refer to REMOVAL [06/2018 - 09/2022]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR TMMK MADE BEFORE SEP. 2019 PRODUCTION

      Tester Connection Condition Specified Condition
      B-20 (TURN+) - A11-11 (TNS) Always Below 1 Ω
      B-13 (TURN-) - A11-12 (GND) Always Below 1 Ω
      FOR TMC MADE OR TMMK MADE FROM SEP. 2019 PRODUCTION

      Tester Connection Condition Specified Condition
      B-20 (TURN+) - A78-11 (TNS) Always Below 1 Ω
      B-13 (TURN-) - A78-12 (GND) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [06/2018 - 09/2022]

    Result:

    OK

    See step  4

  4. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      For LED Type Turn Signal Light A
      For Bulb Type Turn Signal Light, TMC Made B
      For Bulb Type Turn Signal Light, TMMK Made C

    Result:

    B

    See step  6

    Result:

    C

    See step  8

    Result:

    A

    See step  5

  5. CHECK HEADLIGHT UNIT ASSEMBLY LH
    1. Connect the G16 combination meter assembly connector.
    2. Remove each headlight ECU sub-assembly, interchange the headlight unit assembly LH with RH and connect the connectors.

      Refer to DISASSEMBLY [06/2018 - 08/2021]

    3. Check that the front turn signal light operates normally.

      OK

      Front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [06/2018 - 08/2021]

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

  6. CHECK HEADLIGHT UNIT ASSEMBLY LH
    1. Connect the G16 combination meter assembly connector.
    2. Remove each headlight ECU sub-assembly, interchange the headlight unit assembly LH with RH and connect the connectors.

      Refer to DISASSEMBLY [06/2018 - 08/2021]

    3. Check that the front turn signal light operates normally.

      OK

      Front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [06/2018 - 08/2021]

    Result:

    NG

    See step  7

  7. CHECK HEADLIGHT CORD LH
    1. Interchange the headlight cord LH with RH and connect the connectors.

      Refer to DISASSEMBLY [06/2018 - 08/2021]

    2. Check that the front turn signal light operates normally.

      OK

      Front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT CORD LH. Refer to  DISASSEMBLY [06/2018 - 08/2021]

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

  8. CHECK HEADLIGHT ASSEMBLY LH
    1. Connect the G16 combination meter assembly connector.
    2. Remove each headlight ECU sub-assembly, interchange the headlight assembly LH with RH and connect the connectors.

      Refer to DISASSEMBLY [06/2018 - 08/2021]

    3. Check that the front turn signal light operates normally.

      OK

      Front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT ASSEMBLY LH. Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

  9. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      For TMC Made A
      For TMMK Made B

    Result:

    B

    See step  12

    Result:

    A

    See step  10

  10. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT LENS AND BODY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the R9 rear combination light lens and body LH connector.
    2. Disconnect the G16 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R9-3 (TRN) - G16-11 (TRNL) Always Below 1 Ω
      R9-4 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  11

  11. INSPECT REAR COMBINATION LIGHT LENS AND BODY LH
    1. Remove the rear combination light lens and body LH.

      Refer to REMOVAL [06/2018 - 08/2021]

    2. Inspect the rear combination light lens and body LH.

      Refer to INSPECTION [06/2018 - 08/2021]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    NG

    REPLACE REAR COMBINATION LIGHT LENS AND BODY LH. Refer to  REMOVAL [06/2018 - 08/2021]

  12. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the R9 rear combination light assembly LH connector.
    2. Disconnect the G16 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R9-3 (TRN) - G16-11 (TRNL) Always Below 1 Ω
      R9-4 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  13

  13. INSPECT REAR COMBINATION LIGHT ASSEMBLY LH
    1. Remove the rear combination light assembly LH.

      Refer to REMOVAL [06/2018 - 08/2021]

    2. Inspect the rear combination light assembly LH.

      Refer to INSPECTION [06/2018 - 08/2021]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    NG

    REPLACE REAR COMBINATION LIGHT ASSEMBLY LH. Refer to  REMOVAL [06/2018 - 08/2021]

  14. CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the A12 headlight assembly RH connector.*1
    2. Disconnect the A79 headlight assembly RH connector.*2
    3. Disconnect the G16 combination meter assembly connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR TMMK MADE BEFORE SEP. 2019 PRODUCTION

      Tester Connection Condition Specified Condition
      A12-11 (TNS) - G16-7 (LR) Always Below 1 Ω
      A12-12 (GND) - Body ground Always Below 1 Ω
      FOR TMC MADE OR TMMK MADE FROM SEP. 2019 PRODUCTION

      Tester Connection Condition Specified Condition
      A79-11 (TNS) - G16-7 (LR) Always Below 1 Ω
      A79-12 (GND) - Body ground Always Below 1 Ω
      1. *1: for TMMK Made Before Sep. 2019 Production
      2. *2: for TMC Made or TMMK Made From Sep. 2019 Production

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  15

  15. INSPECT HEADLIGHT ECU SUB-ASSEMBLY RH

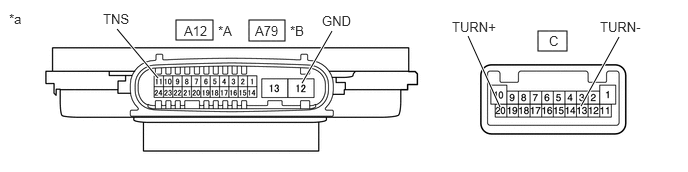

    GTY959344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A For TMMK Made Before Sep. 2019 Production *B For TMC Made or TMMK Made From Sep. 2019 Production
    *a Component without harness connected
    (Headlight ECU Sub-assembly RH)    		 - -
    1. Remove the headlight ECU sub-assembly RH.

      Refer to REMOVAL [06/2018 - 09/2022]

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR TMMK MADE BEFORE SEP. 2019 PRODUCTION

      Tester Connection Condition Specified Condition
      C-20 (TURN+) - A12-11 (TNS) Always Below 1 Ω
      C-13 (TURN-) - A12-12 (GND) Always Below 1 Ω
      FOR TMC MADE OR TMMK MADE FROM SEP. 2019 PRODUCTION

      Tester Connection Condition Specified Condition
      C-20 (TURN+) - A79-11 (TNS) Always Below 1 Ω
      C-13 (TURN-) - A79-12 (GND) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [06/2018 - 09/2022]

    Result:

    OK

    See step  16

  16. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      For LED Type Turn Signal Light A
      For Bulb Type Turn Signal Light, TMC Made B
      For Bulb Type Turn Signal Light, TMMK Made C

    Result:

    B

    See step  18

    Result:

    C

    See step  20

    Result:

    A

    See step  17

  17. CHECK HEADLIGHT UNIT ASSEMBLY RH
    1. Connect the G16 combination meter assembly connector.
    2. Remove each headlight ECU sub-assembly, interchange the headlight unit assembly RH with LH and connect the connectors.

      Refer to DISASSEMBLY [06/2018 - 08/2021]

    3. Check that the front turn signal light operates normally.

      OK

      Front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [06/2018 - 08/2021]

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

  18. CHECK HEADLIGHT UNIT ASSEMBLY RH
    1. Connect the G16 combination meter assembly connector.
    2. Remove each headlight ECU sub-assembly, interchange the headlight unit assembly RH with LH and connect the connectors.

      Refer to DISASSEMBLY [06/2018 - 08/2021]

    3. Check that the front turn signal light operates normally.

      OK

      Front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [06/2018 - 08/2021]

    Result:

    NG

    See step  19

  19. CHECK HEADLIGHT CORD RH
    1. Interchange the headlight cord RH with LH and connect the connectors.

      Refer to DISASSEMBLY [06/2018 - 08/2021]

    2. Check that the front turn signal light operates normally.

      OK

      Front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT CORD RH. Refer to  DISASSEMBLY [06/2018 - 08/2021]

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

  20. CHECK HEADLIGHT ASSEMBLY RH
    1. Connect the G16 combination meter assembly connector.
    2. Remove each headlight ECU sub-assembly, interchange the headlight assembly RH with LH and connect the connectors.

      Refer to DISASSEMBLY [06/2018 - 08/2021]

    3. Check that the front turn signal light operates normally.

      OK

      Front turn signal light blinks.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT ASSEMBLY RH. Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

  21. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      For TMC Made A
      For TMMK Made B

    Result:

    B

    See step  24

    Result:

    A

    See step  22

  22. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT LENS AND BODY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the R8 rear combination light lens and body RH connector.
    2. Disconnect the G16 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R8-3 (TRN) - G16-5 (TRNR) Always Below 1 Ω
      R8-4 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  23

  23. INSPECT REAR COMBINATION LIGHT LENS AND BODY RH
    1. Remove the rear combination light lens and body RH.

      Refer to REMOVAL [06/2018 - 08/2021]

    2. Inspect the rear combination light lens and body RH.

      Refer to INSPECTION [06/2018 - 08/2021]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    NG

    REPLACE REAR COMBINATION LIGHT LENS AND BODY RH. Refer to  REMOVAL [06/2018 - 08/2021]

  24. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the R8 rear combination light assembly RH connector.
    2. Disconnect the G16 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R8-3 (TRN) - G16-5 (TRNR) Always Below 1 Ω
      R8-4 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  25

  25. INSPECT REAR COMBINATION LIGHT ASSEMBLY RH
    1. Remove the rear combination light assembly RH.

      Refer to REMOVAL [06/2018 - 08/2021]

    2. Inspect the rear combination light assembly RH.

      Refer to INSPECTION [06/2018 - 08/2021]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    NG

    REPLACE REAR COMBINATION LIGHT ASSEMBLY RH. Refer to  REMOVAL [06/2018 - 08/2021]

scientia non olet · About LEMON Manuals
