Parts Location [09/2022 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 300h, 2024 Lexus ES 250, 2023 Lexus ES 350, and 2023 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

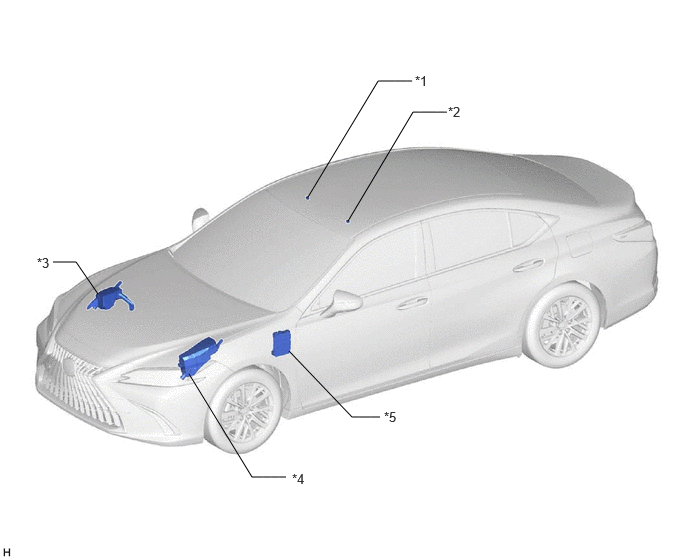

| *1 | TELEPHONE MICROPHONE ASSEMBLY (RH) | *2 | TELEPHONE MICROPHONE ASSEMBLY (LH) |
| *3 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - AMP NO. 1 FUSE (for 17 Speakers) |
*4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - TV FUSE |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - PANEL FUSE - ECU-DCC NO. 2 FUSE - METER-IG2 FUSE - ECU-B NO. 2 FUSE |
- | - |

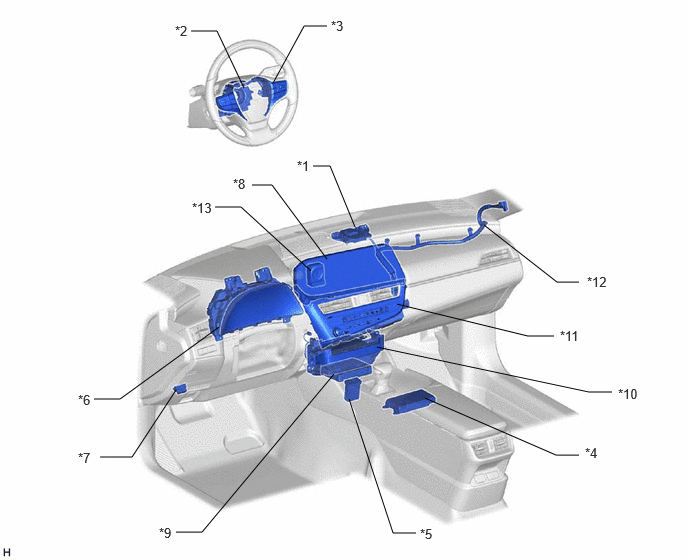

| *1 | NAVIGATION ANTENNA ASSEMBLY (w/o Heated Windshield Defroster System) - GPS |
*2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charging System) |
| *5 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *6 | COMBINATION METER ASSEMBLY |
| *7 | DLC3 | *8 | MULTI-DISPLAY ASSEMBLY |
| *9 | DCM (TELEMATICS TRANSCEIVER) (w/ Telematics Transceiver) |
*10 | RADIO RECEIVER ASSEMBLY |
| *11 | AIR CONDITIONING CONTROL ASSEMBLY | *12 | ANTENNA CORD SUB-ASSEMBLY |
| *13 | CLOCK ASSEMBLY | - | - |

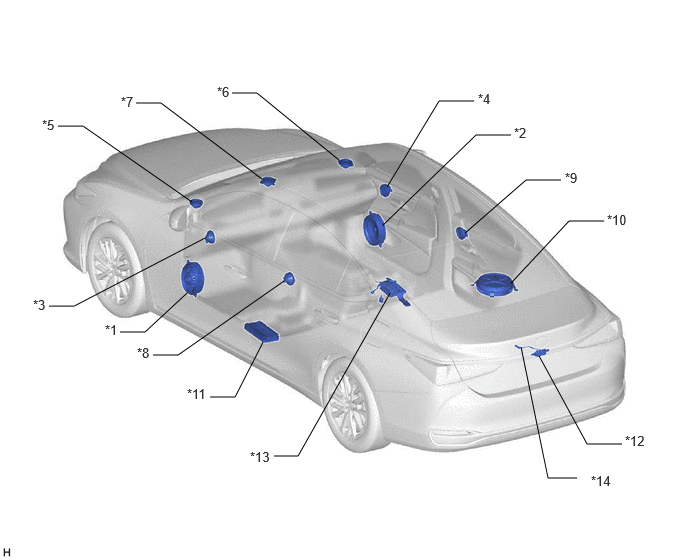

| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 4 SPEAKER ASSEMBLY LH (for 17 Speakers) | *4 | FRONT NO. 4 SPEAKER ASSEMBLY RH (for 17 Speakers) |
| *5 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *6 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *7 | FRONT NO. 3 SPEAKER ASSEMBLY | *8 | REAR SPEAKER ASSEMBLY LH |
| *9 | REAR SPEAKER ASSEMBLY RH | *10 | SPEAKER ASSEMBLY WITH BRACKET |
| *11 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *12 | Rear Television Camera Assembly (w/ Parking Assist Monitor System) |
| *13 | Parking Assist ECU (w/ Panoramic View Monitor System) |
*14 | TELEVISION CAMERA WIRE |

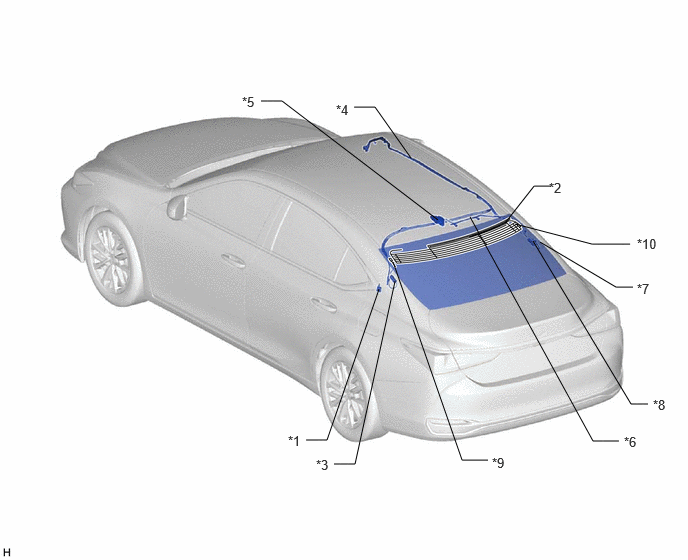

| *1 | RADIO SETTING CONDENSER | *2 | WINDOW GLASS ANTENNA WIRE |
| *3 | NO. 2 AMPLIFIER ANTENNA ASSEMBLY | *4 | NO. 2 ANTENNA CORD SUB-ASSEMBLY |
| *5 | TELEPHONE ANTENNA ASSEMBLY - SiriusXM (w/ SXM Function) |
*6 | NO. 3 ANTENNA CORD SUB-ASSEMBLY (w/ SXM Function) |
| *7 | NO. 4 ANTENNA CORD SUB-ASSEMBLY | *8 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY |
| *9 | - FM Sub | *10 | - FM Main - AM |
