Parts Location [09/2022 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 300h, 2024 Lexus ES 250, 2023 Lexus ES 350, and 2023 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

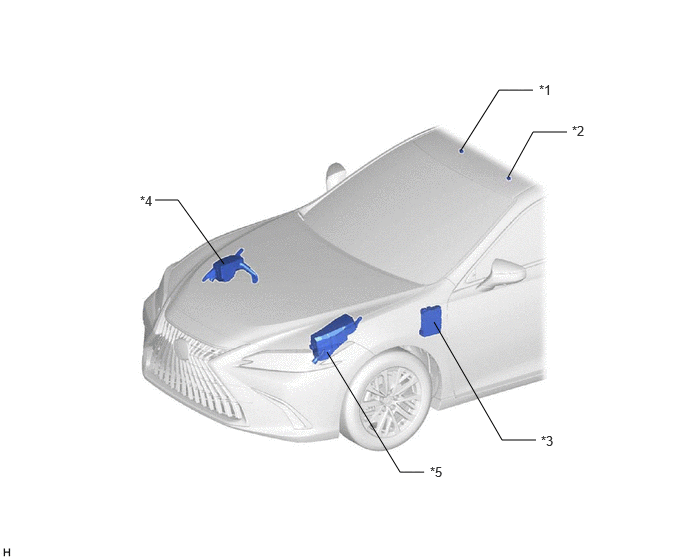

Fig 1: Audio And Visual System (For 12.3 Inch Display) Replacement Components (1 Of 4) [09/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TELEPHONE MICROPHONE ASSEMBLY RH	*2	TELEPHONE MICROPHONE ASSEMBLY LH
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-IG1 NO. 3 FUSE - ECU-IG1 NO. 4 FUSE - ECU-IG2 NO. 3 FUSE - TAIL FUSE - ECU-DCC NO. 2 FUSE - METER-IG2 FUSE - ECU-B NO. 2 FUSE - DCM	*4	NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - AMP NO. 1 FUSE (for 17 Speakers)
*5	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - TV FUSE	-	-

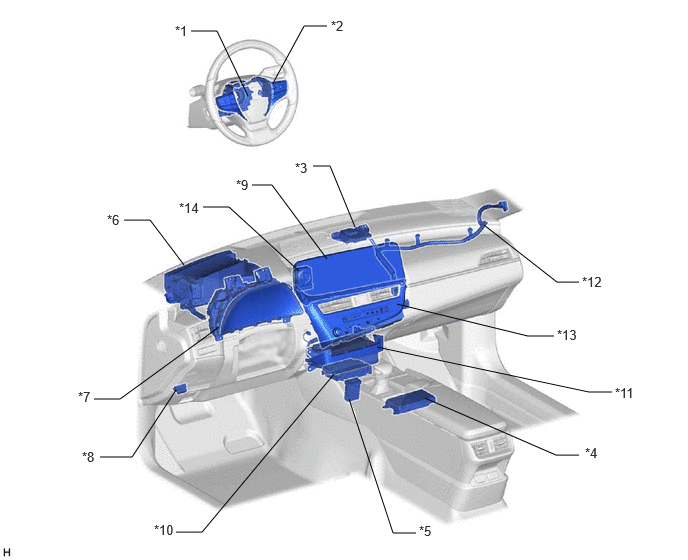

Fig 1: Audio And Visual System (For 12.3 Inch Display) Replacement Components (2 Of 4) [09/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	SPIRAL CABLE SUB-ASSEMBLY	*2	STEERING PAD SWITCH ASSEMBLY
*3	NAVIGATION ANTENNA ASSEMBLY - GPS	*4	MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
*5	NO. 1 STEREO JACK ADAPTER ASSEMBLY	*6	HEADUP DISPLAY (METER MIRROR SUB ASSEMBLY) (w/ Headup Display System)
*7	COMBINATION METER ASSEMBLY	*8	DLC3
*9	MULTI-DISPLAY ASSEMBLY	*10	DCM(TELEMATICS TRANSCEIVER) (w/ DCM(Telematics Transceiver))
*11	RADIO RECEIVER ASSEMBLY	*12	ANTENNA CORD SUB-ASSEMBLY
*13	AIR CONDITIONING CONTROL ASSEMBLY	*14	CLOCK ASSEMBLY

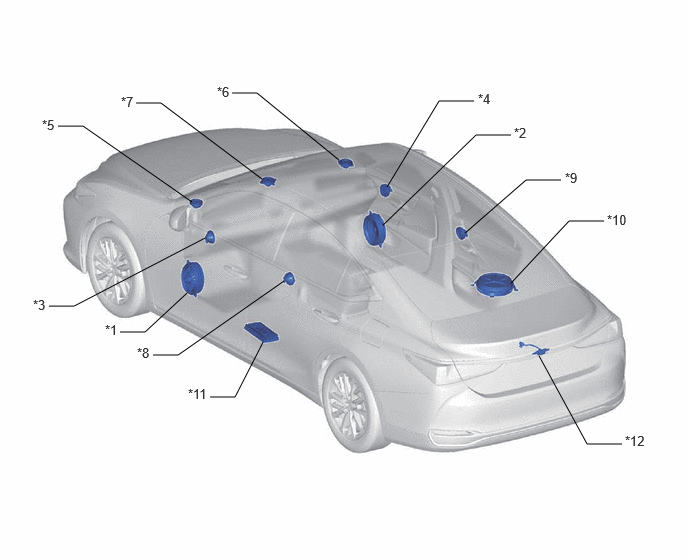

Fig 1: Audio And Visual System (For 12.3 Inch Display) Replacement Components (3 Of 4) [09/2022 - ]

*1	FRONT NO. 1 SPEAKER ASSEMBLY LH	*2	FRONT NO. 1 SPEAKER ASSEMBLY RH
*3	FRONT NO. 4 SPEAKER ASSEMBLY LH (for 17 Speakers)	*4	FRONT NO. 4 SPEAKER ASSEMBLY RH (for 17 Speakers)
*5	FRONT NO. 2 SPEAKER ASSEMBLY LH	*6	FRONT NO. 2 SPEAKER ASSEMBLY RH
*7	FRONT NO. 3 SPEAKER ASSEMBLY	*8	REAR SPEAKER ASSEMBLY LH
*9	REAR SPEAKER ASSEMBLY RH	*10	SPEAKER ASSEMBLY WITH BRACKET
*11	STEREO COMPONENT AMPLIFIER ASSEMBLY	*12	Rear Television Camera Assembly (w/ Parking Assist Monitor System)

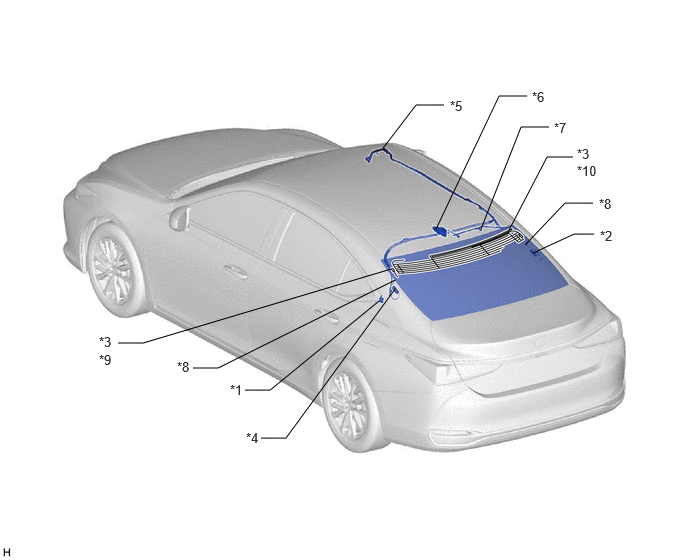

Fig 1: Audio And Visual System (For 12.3 Inch Display) Replacement Components (4 Of 4) [09/2022 - ]

*1	RADIO SETTING CONDENSER	*2	NO. 1 AMPLIFIER ANTENNA ASSEMBLY
*3	WINDOW GLASS ANTENNA WIRE	*4	NO. 2 AMPLIFIER ANTENNA ASSEMBLY
*5	NO. 2 ANTENNA CORD SUB-ASSEMBLY	*6	TELEPHONE ANTENNA ASSEMBLY - SiriusXM (w/ SXM Function)
*7	NO. 3 ANTENNA CORD SUB-ASSEMBLY (w/ SXM Function)	*8	NO. 4 ANTENNA CORD SUB-ASSEMBLY
*9	- FM Sub	*10	- FM Main - AM
