Removal [08/2021 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  3. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 21

  4. REMOVE V-RIBBED BELT

    Refer to REMOVAL [08/2020 - ]

  5. REMOVE GENERATOR ASSEMBLY

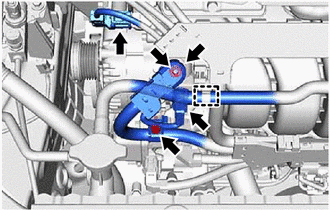

    1. Disconnect the generator assembly connector.
      GTY947151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the terminal cap.
    3. Remove the nut and disconnect the wire harness from terminal B.
    4. Remove the bolt and separate the wire harness clamp bracket from the generator assembly.
    5. Disconnect the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) connector.
    6. Disengage the clamp.

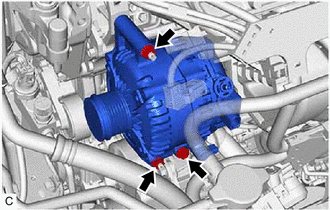

    7. Remove the 2 nuts, bolt and generator assembly.
      GTY947152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
