Components [08/2020 - ]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

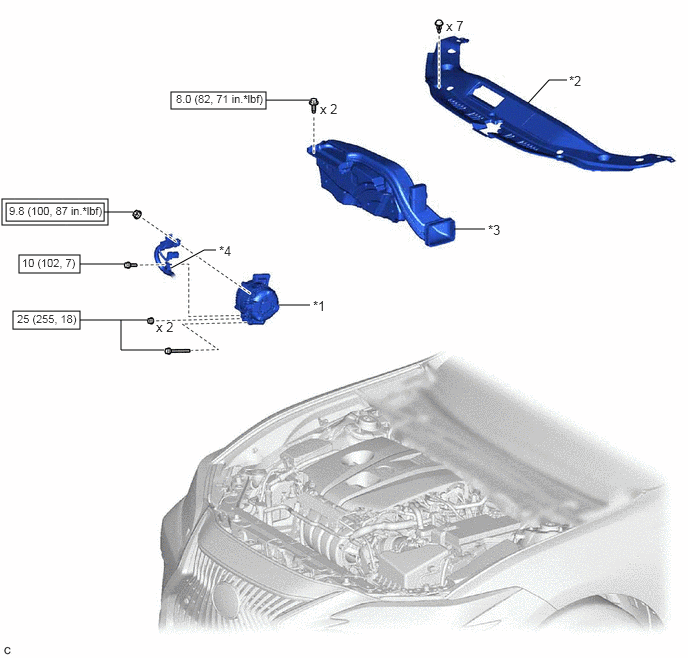

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
GENERATOR ASSEMBLY |
*2 |
COOL AIR INTAKE DUCT SEAL |
| *3 |
INLET AIR CLEANER ASSEMBLY |
*4 |
WIRE HARNESS CLAMP BRACKET |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
 |
N.m (kgf/cm, ft.lbf): Specified torque |

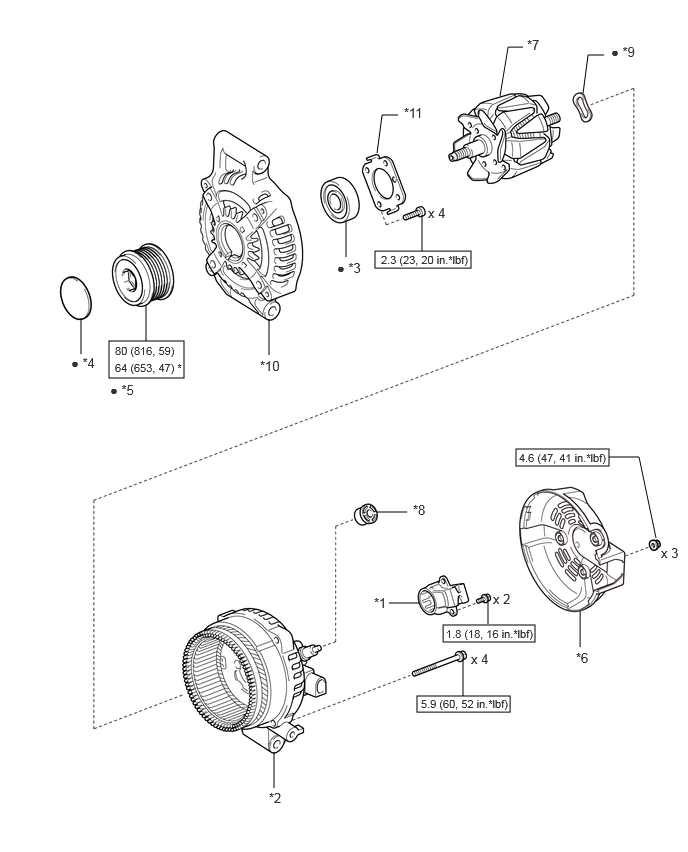

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
GENERATOR BRUSH HOLDER ASSEMBLY |
*2 |
GENERATOR COIL ASSEMBLY |
| *3 |
GENERATOR ROTOR BEARING |
*4 |
GENERATOR PULLEY CAP |
| *5 |
GENERATOR PULLEY WITH CLUTCH |
*6 |
GENERATOR REAR END COVER |
| *7 |
GENERATOR ROTOR ASSEMBLY |
*8 |
GENERATOR TERMINAL INSULATOR |
| *9 |
WASHER |
*10 |
GENERATOR DRIVE END FRAME |
| *11 |
RETAINER PLATE |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
- |
- |
