Components [08/2020 - ]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

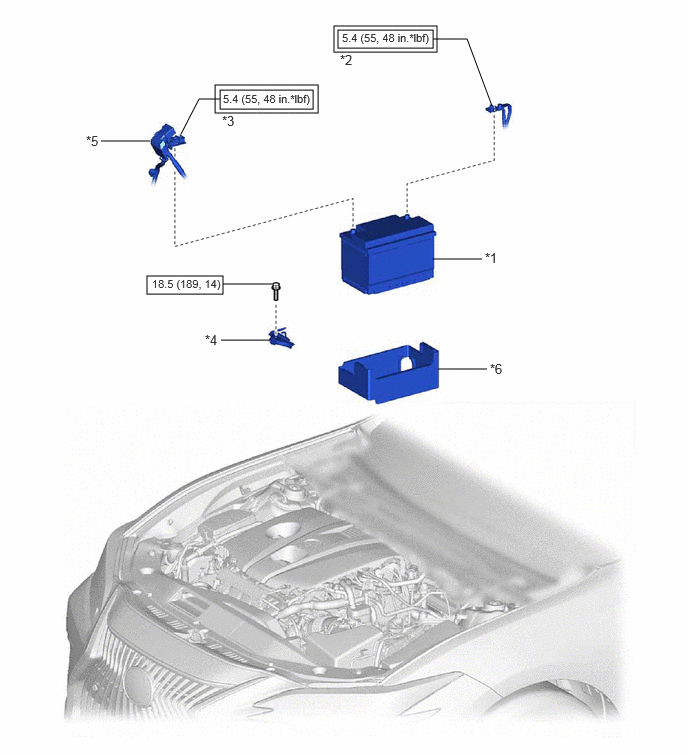

| *1 | BATTERY | *2 | NEGATIVE BATTERY TERMINAL |
| *3 | POSITIVE BATTERY TERMINAL | *4 | NO. 2 BATTERY CLAMP |
| *5 | BATTERY TERMINAL CAP | *6 | BATTERY INSULATOR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
