Replacement [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 9 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 8 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 10 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 10 [09/2022 - ]

  4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 11 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 11 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 11 [09/2022 - ]

  5. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH

    Refer to REMOVAL [08/2020 - ]

  6. REMOVE DRIVE SHAFT BEARING BRACKET

    Refer to PROCEDURE - Step 1 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 1 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 1 [09/2022 - ]

  7. REMOVE TRANSFER CASE OIL SEAL RH
    1. Using SST, remove the transfer case oil seal RH from the transfer assembly.
      • SST: 09308-00010
      NOTE:

      Do not scratch the press-fitting surface of the transfer case oil seal RH.

      GTY957760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transfer Case Oil Seal RH
  8. INSTALL TRANSFER CASE OIL SEAL RH
    1. Coat the lip of a new transfer case oil seal RH with MP grease.

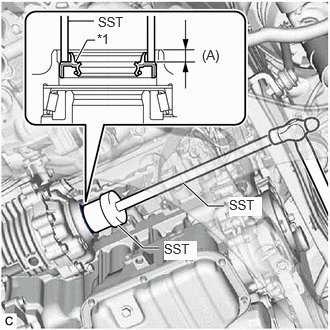

    2. Using SST and a hammer, tap in the transfer case oil seal RH to the transfer assembly as shown in the illustration.
      GTY958192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transfer Case Oil Seal RH
      • SST: 09631-32020
      • SST: 09950-60021
        1. 09951-00680
      • SST: 09950-70010
        1. 09951-07360

      Drive in Depth (A)

      7.5 to 8.5 mm (0.296 to 0.334 in.)

      NOTE:
      • Tap the transfer case oil seal RH uniformly so that the transfer case oil seal RH is straight.
      • Do not tap the transfer case oil seal RH in too far.
  9. INSTALL DRIVE SHAFT BEARING BRACKET

    Refer to PROCEDURE - Step 49 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 48 [08/2021 - ]

  10. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH

    Refer to INSTALLATION [08/2020 - ]

  11. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 71 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 72 [08/2021 - ]

  12. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 72 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 73 [08/2021 - ]

  13. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 73 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 74 [08/2021 - ]

  14. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 74 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 75 [08/2021 - ]
