DTC B2250: PBD/PTL Closer Operation [06/2018 - 08/2021]: Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK FOR DTC
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Back Door / Trouble Codes.
- Clear the DTCs.
Body Electrical > Back Door > Clear DTCs
- Check for DTCs.
Body Electrical > Back Door > Trouble Codes
OK
DTC B2250 is not output.
Result
Proceed to OK NG
Result:
OK
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]
Result:
NG
See step 2
- CHECK HARNESS AND CONNECTOR (LUGGAGE CLOSER MOTOR ASSEMBLY - LUGGAGE DOOR CLOSER ASSEMBLY)
- Disconnect the R7 luggage closer motor assembly connector.
- Disconnect the R18 luggage door closer assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition R7-16 (CSG) - R18-4 (CPSE) Always Below 1 Ω R7-17 (CS2) - R18-9 (CPS2) Always Below 1 Ω R7-18 (CS1) - R18-2 (CPS1) Always Below 1 Ω R7-19 (CSV) - R18-3 (CPS+) Always Below 1 Ω R7-16 (CSG) or R18-4 (CPSE) - Body ground Always 10 kΩ or higher R7-17 (CS2) or R18-9 (CPS2) - Body ground Always 10 kΩ or higher R7-18 (CS1) or R18-2 (CPS1) - Body ground Always 10 kΩ or higher R7-19 (CSV) or R18-3 (CPS+) - Body ground Always 10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- CHECK LUGGAGE CLOSER MOTOR ASSEMBLY
- Reconnect the R7 luggage closer motor assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition R18-4 (CPSE) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition R18-2 (CPS1) - Body ground Power switch on (IG), power trunk lid not operate 7 V or higher R18-3 (CPS+) - Body ground Power switch on (IG), power trunk lid not operate 7 V or higher R18-9 (CPS2) - Body ground Power switch on (IG), power trunk lid not operate 7 V or higher Result
Proceed to OK NG
Result:
NG
REPLACE LUGGAGE CLOSER MOTOR ASSEMBLY. Refer to REMOVAL [06/2018 - ]
Result:
OK
See step 4
- CHECK LUGGAGE DOOR CLOSER ASSEMBLY
- Disconnect R18-8 (M+) and R18-1 (M-) from the luggage door closer assembly connectors.
- Reconnect the R18 luggage door closer assembly connector.

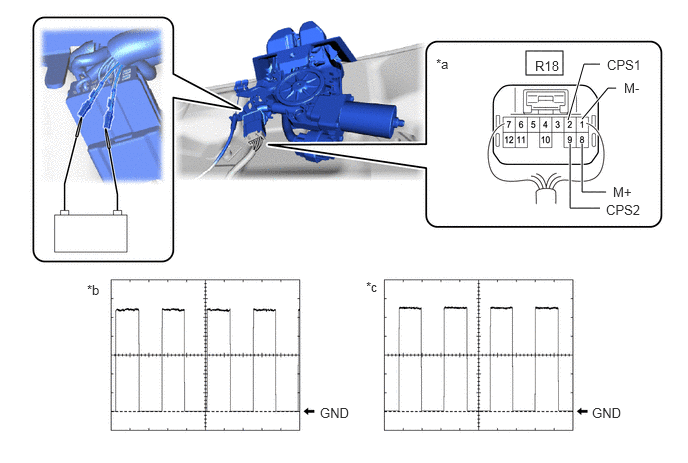

- Using an oscilloscope, check the waveform.
*a Component with harness connected
(Luggage Door Closer Assembly)*b Waveform 1 *c Waveform 2 - - NOTE:Do not operate any other functions until this inspection is finished.
OK
Tester Connection Condition Tool Setting Specified Condition R18-2 (CPS1) - Body ground - Auxiliary battery positive (+) → R18-8 (M+)
- Auxiliary battery negative (-) → R18-1 (M-)
2 V/DIV., 10 ms./DIV. Pulse generation
(waveform 1)R18-9 (CPS2) - Body ground - Auxiliary battery positive (+) → R18-8 (M+)
- Auxiliary battery negative (-) → R18-1 (M-)
2 V/DIV., 10 ms./DIV. Pulse generation
(waveform 2)Result
Proceed to OK NG
Result:
OK
REPLACE LUGGAGE CLOSER MOTOR ASSEMBLY. Refer to REMOVAL [06/2018 - 08/2021]
Result:
NG
REPLACE LUGGAGE DOOR CLOSER ASSEMBLY. Refer to REMOVAL [06/2018 - ]
