Parts Location [09/2022 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
| *A | w/ Power Trunk Lid System | - | - |

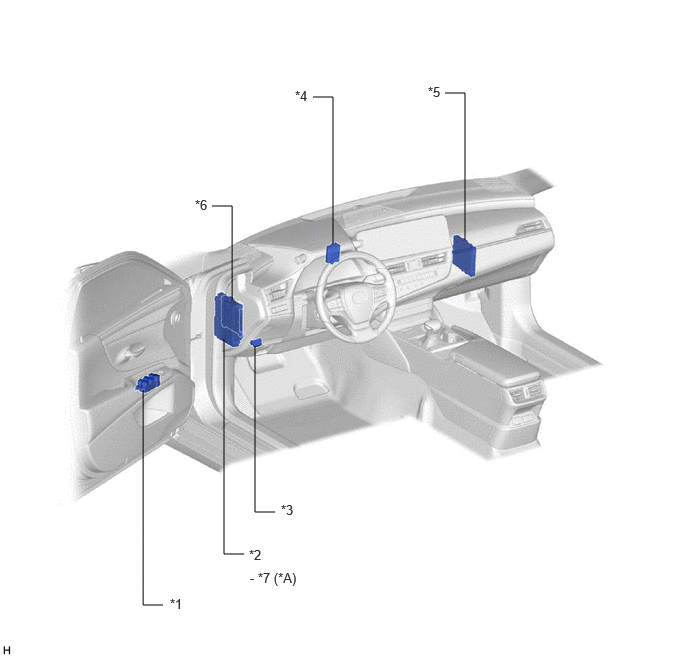

| *1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - DOOR F/L FUSE - DOOR F/R FUSE - DOOR R/L FUSE - DOOR R/R FUSE - S/ROOF FUSE - STRG LOCK FUSE - ECU-B NO. 1 FUSE |
| *3 | DLC3 | *4 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *5 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | ECU-DCC NO. 2 FUSE | - | - |
| *A | w/ Power Trunk Lid System | - | - |

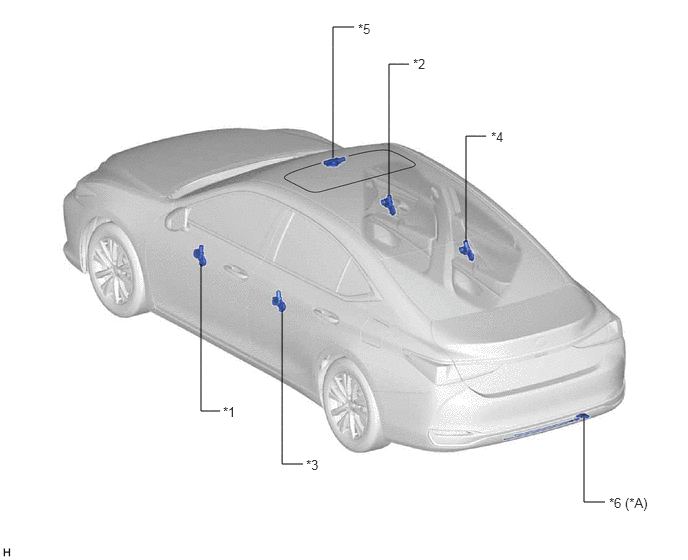

| *1 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (DRIVER DOOR) | *2 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (FRONT PASSENGER DOOR) |
| *3 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR LH DOOR) | *4 | POWER WINDOW REGULATOR MOTOR ASSEMBLY (REAR RH DOOR) |
| *5 | SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY) | *6 | KICK DOOR CONTROL SENSOR |
