Removal [08/2021 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
Refer to REMOVAL [08/2021 - 09/2022]

REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

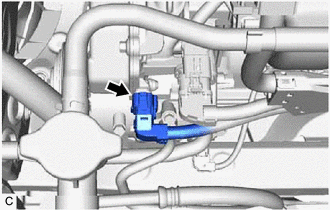

Disconnect the sensor wire connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

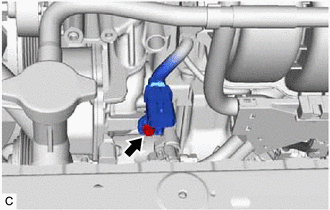

Using an 8 mm socket wrench, remove the bolt and disconnect the sensor wire from the engine water pump assembly (water inlet housing).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

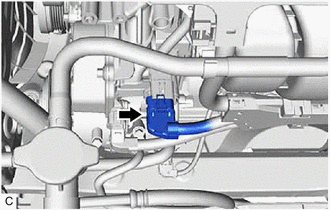

Disconnect the engine water pump assembly (water inlet housing) connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

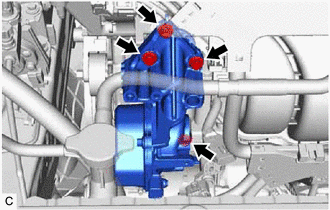

Remove the 4 bolts and engine water pump assembly (water inlet housing) from the cylinder block assembly.

Remove the gasket from the engine water pump assembly (water inlet housing).

Using an E8 "TORX" socket wrench, remove the stud bolt.
