Removal [08/2020 - 08/2021]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 1
REMOVE GENERATOR ASSEMBLY
Refer to REMOVAL [08/2020 - 08/2021]
DISCONNECT NO. 2 RADIATOR HOSE
Refer to PROCEDURE - Step 33

REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

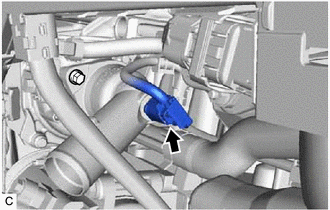

Disconnect the water inlet with thermostat sub-assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

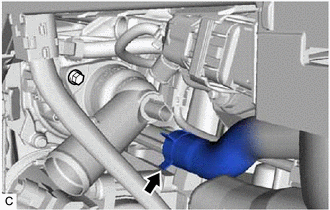

Slide the clip and disconnect the No. 7 water by-pass hose from the water inlet with thermostat sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not apply force to the water inlet with thermostat sub-assembly when disconnecting the No. 7 water by-pass hose.
Do not damage the water inlet with thermostat sub-assembly.

HINT:

When disconnecting the No. 7 water by-pass hose, slide the clip, rotate the hose and pull it straight off the pipe.

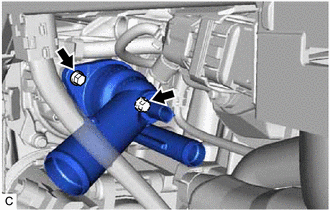

Using an 8 mm socket wrench, remove the 2 bolts and water inlet with thermostat sub-assembly.

Remove the gasket from the water inlet with thermostat sub-assembly.
