Installation [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)
    1. Install the flow shutting valve (No. 1 water by-pass hose) with the bolt.

      Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

    2. Connect the flow shutting valve (No. 1 water by-pass hose) connector.
    3. Connect the flow shutting valve (No. 1 water by-pass hose) to the transmission oil cooler and slide the clip to secure it.

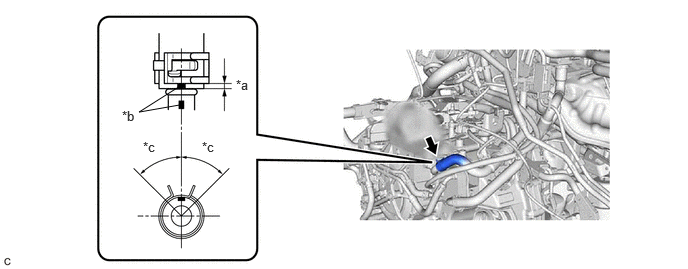

      GTY743472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 2 to 7 mm (0.0787 to 0.276 in.) *b Paint Mark
      *c 45° (Tabs of Clip Installation Area) - -
      NOTE:
      • Make sure to slide the flow shutting valve (No. 1 water by-pass hose) until it contacts the hose stopper of the transmission oil cooler.
      • Make sure to align the paint mark of the flow shutting valve (No. 1 water by-pass hose) with the paint mark of the transmission oil cooler.
      • Make sure that the tabs of the clip are within the area shown in the illustration.
    4. Connect the flow shutting valve (No. 1 water by-pass hose) to the water outlet and slide the clip to secure it.

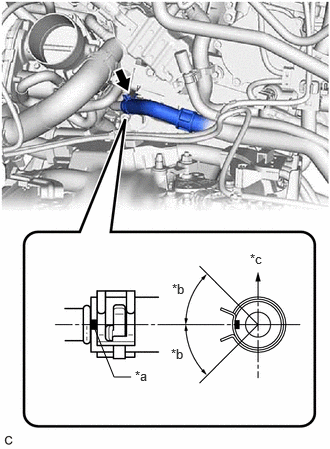

      GTY947376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Paint Mark
      *b 45° (Tabs of Clip Installation Area)
      *c Upper
      NOTE:
      • Make sure to slide the flow shutting valve (No. 1 water by-pass hose) until it contacts the hose stopper of the water outlet.
      • Make sure that the tabs of the clip are within the area shown in the illustration.
    5. Engage the 2 clamps to connect the flow shutting valve (No. 1 water by-pass hose) and transmission breather hose to the hose clamp.
    6. Engage the 3 clamps to install the hose clamp.
    7. Engage the 3 clamps to install the transmission breather clamp.
  2. INSTALL BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 43 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 44 [08/2021 - ]

  3. INSTALL BATTERY

    Refer to INSTALLATION [08/2020 - ]

  4. INSTALL ECM

    Refer to INSTALLATION [08/2020 - ]

  5. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  6. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  7. INSTALL FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 69 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 70 [08/2021 - ]

  8. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 71 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 72 [08/2021 - ]

  9. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 72 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 73 [08/2021 - ]

  10. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 74 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 75 [08/2021 - ]

  11. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 73 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 74 [08/2021 - ]

  12. INSTALL FRONT WHEEL LH

    Refer to PROCEDURE - Step 1
