Components [08/2020 - ]

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

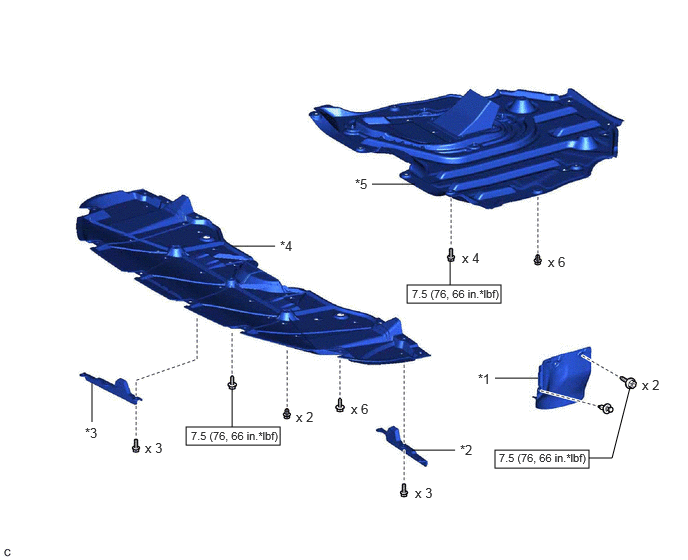

Fig 1: Flow Shutting Valve (for ATF) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT FENDER APRON SEAL LH	*2	FRONT WHEEL OPENING EXTENSION PAD LH
*3	FRONT WHEEL OPENING EXTENSION PAD RH	*4	NO. 1 ENGINE UNDER COVER
*5	NO. 2 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

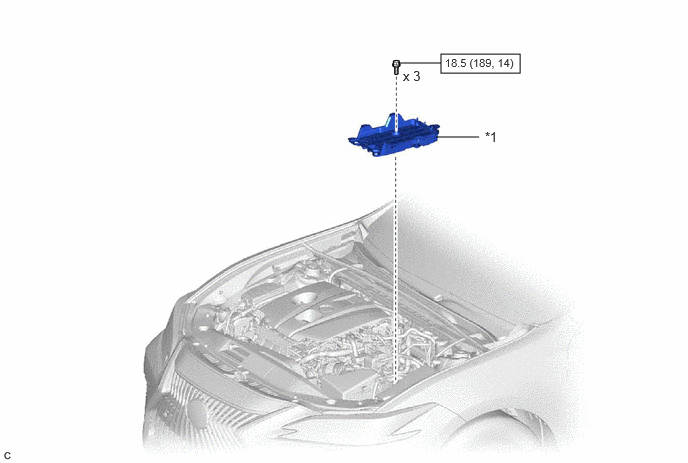

Fig 2: Flow Shutting Valve (for ATF) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BATTERY CLAMP SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

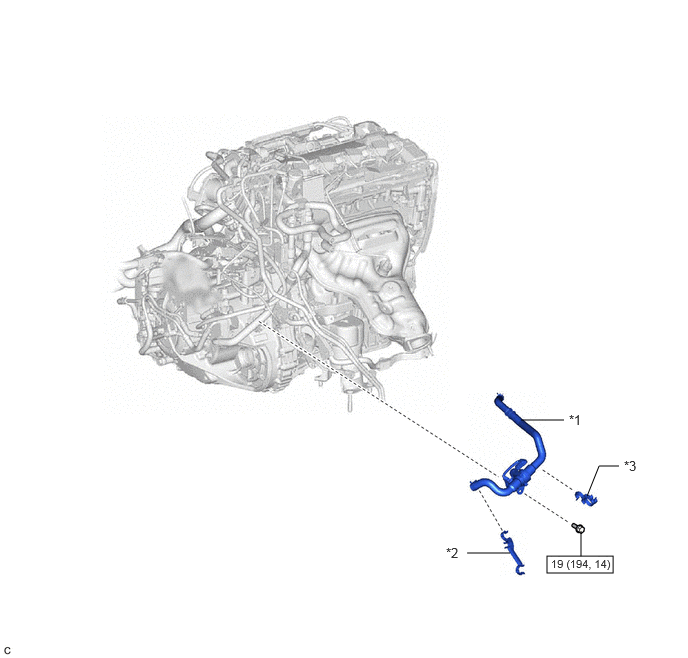

Fig 3: Flow Shutting Valve (for ATF) Replacement Components With Torque Specifications (3 Of 3)

*1	FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)	*2	TRANSMISSION BREATHER CLAMP
*3	HOSE CLAMP	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
