Parts Location [09/2022 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 300h, 2024 Lexus ES 250, 2023 Lexus ES 350, and 2023 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY (for HV Model) - SKID CONTROL ECU |
*2 | OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER MIRROR RETRACTOR RH - SIDE TELEVISION CAMERA ASSEMBLY RH |
| *3 | OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER MIRROR RETRACTOR LH - SIDE TELEVISION CAMERA ASSEMBLY LH |
*4 | RACK AND PINION POWER STEERING GEAR ASSEMBLY - POWER STEERING ECU |
| *5 | REAR TELEVISION CAMERA ASSEMBLY | *6 | BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System) |
| *7 | BLIND SPOT MONITOR SENSOR RH (w/ Blind Spot Monitor System) | *8 | FRONT TELEVISION CAMERA ASSEMBLY |
| *9 | BRAKE ACTUATOR ASSEMBLY (for Gasoline Model) - SKID CONTROL ECU |
*10 | TELEVISION CAMERA WIRE |
| *11 | ECM | - | - |

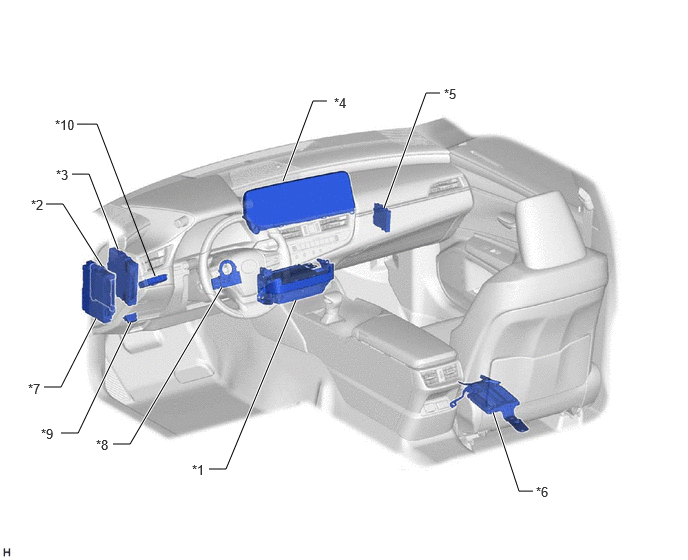

| *1 | RADIO RECEIVER ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | HYBRID VEHICLE CONTROL ECU (for HV Model) | *4 | MULTI-DISPLAY ASSEMBLY |
| *5 | CLEARANCE WARNING ECU ASSEMBLY (w/ LEXUS Parking Assist-sensor System) | *6 | PARKING ASSIST ECU |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - ECU-IG1 NO. 3 FUSE |
*8 | STEERING SENSOR |
| *9 | DLC3 | *10 | PANORAMIC VIEW MONITOR SWITCH (NO. 2 COMBINATION SWITCH ASSEMBLY) |
