DTC B1572: Telephone Microphone Error [06/2018 - 10/2019]: Procedure

1. Turn the power switch off.
2. Connect the Techstream to the DLC3.
3. Turn the power switch on (IG) and wait for 10 seconds.
4. Turn the Techstream on.
5. Clear the DTCs.

   Body Electrical > Telematics > Clear DTCs

6. Recheck for DTCs.

   Body Electrical > Telematics > Trouble Codes

   Result

   Result	Proceed to
   DTC B1572 is output	A
   DTC B1572 is not output	B

Result:

B

CHECK FOR INTERMITTENT PROBLEMS. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]

Result:

A

See step  2

1. Remove the telephone microphone assembly but do not disconnect the connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Telephone Microphone Assembly)

   Refer to REMOVAL [06/2018 - 08/2021]

2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   P18-1 (MACC) - Body ground	Power switch on (ACC)	4 to 6 V

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   P18-4 (MCO-) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  4

Result:

OK

See step  3

1. Disconnect the G10 DCM (Telematics Transceiver) connector.
2. Disconnect the P18 telephone microphone assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G10-34 (MCI+) - P18-2 (MCO+)	Always	Below 1 Ω
   G10-34 (MCI+) or P18-2 (MCO+) - Body ground	Always	10 kΩ or higher
   G10-35 (MCI-) - P18-4 (MCO-)	Always	Below 1 Ω
   G10-35 (MCI-) or P18-4 (MCO-) - Body ground	Always	10 kΩ or higher
   G10-32 (SGND) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE TELEPHONE MICROPHONE ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Remove the DCM (Telematics Transceiver) but do not disconnect the connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

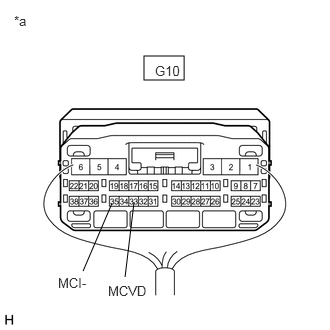

   *a	Component with harness connected (DCM (Telematics Transceiver))

   Refer to REMOVAL [06/2018 - 10/2019]

2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   G10-33 (MCVD) - Body ground	Power switch on (ACC)	4 to 6 V

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G10-35 (MCI-) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

OK

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

NG

See step  5

1. Replace the DCM (Telematics Transceiver).

   Refer to REMOVAL [06/2018 - 10/2019]

   NOTE:

   • The power switch must be off.
   • Do not swap the DCM (Telematics Transceiver) with one from another vehicle.

   Result

   Proceed to
   NEXT

Result:

NEXT

PERFORM DCM ACTIVATION. Refer to  DCM ACTIVATION [06/2018 - 10/2019]
