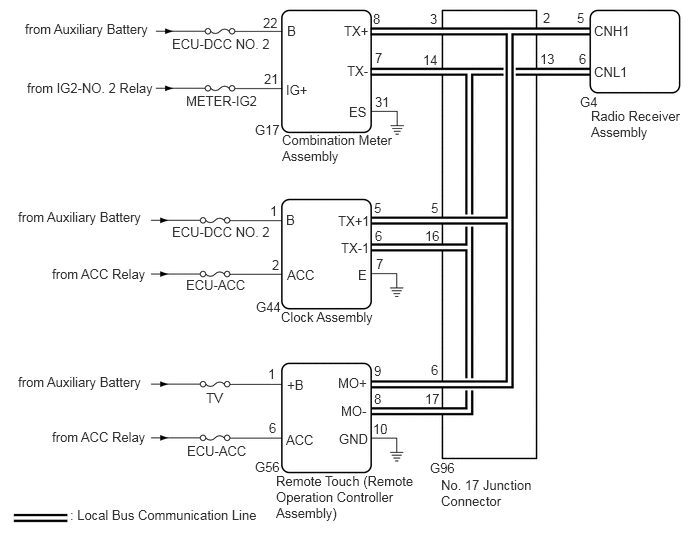

DTC B1323: Lost Communication with Haptic Device; DTC B1324: Lost Communication with Meter; DTC B1326: Lost Communication with Clock Device (Local-CAN) [06/2018 - 08/2021]: Wiring Diagram

WARNING: This page is about a different car, the 2022 Lexus ES 300h, 2021 Lexus ES 300h, 2020 Lexus ES 300h, and 2019 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
