Terminals Of Ecu [09/2022 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

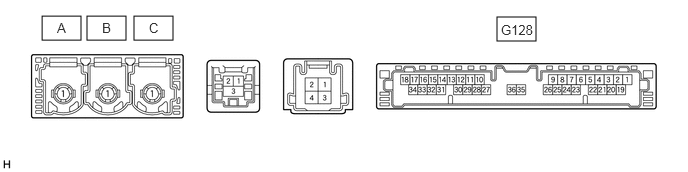

- CHECK DCM (TELEMATICS TRANSCEIVER)
Terminal No. (Symbol) Terminal Description Condition Specified Condition G128-1 (+B) - G128-20 (E) Power source (+B) Power switch off 11 to 14 V G128-3 (SIG-) - G128-20 (E) Ground Always Below 1 V G128-4 (IND1) - G128-20 (E) Manual (SOS) switch red indicator illumination signal For 2 seconds after turning the power switch on (IG) 1 to 8.5 V Power switch off Below 1 V G128-5 (MCVD) - G128-20 (E) Telephone microphone assembly power supply Power switch on (IG) 7.5 to 8.5 V Power switch off Below 1 V G128-6 (MCI+) - G128-20 (E) Receive microphone voice signal Voice being input to telephone microphone assembly A waveform synchronized with microphone voice signal is input G128-7 (MCI-) - G128-20 (E) Receive microphone voice signal Always Below 1 V G128-13 (GSW) - G128-20 (E) Collision detection signal Power switch on (IG) Pulse generation (Refer to waveform1) G128-19 (IG2) - G128-20 (E) Power source (IG) Power switch on (IG) 11 to 14 V Power switch off Below 1 V G128-20 (E) - Body ground Ground Always Below 1 Ω G128-21 (SIG1) - G128-3 (SIG-) Manual (SOS) switch button condition signal Manual (SOS) switch not pressed 1.3 to 1.9 V Manual (SOS) switch pressed 0.5 to 0.8 V G128-22 (IND2) - G128-20 (E) Manual (SOS) switch green indicator illumination signal For 2 seconds after turning the power switch on (IG) 1 to 8.5 V Power switch off Below 1 V G128-23 (SGND) - G128-20 (E) Shield ground Always Below 1 Ω G128-25 (CANP) CAN communication signal - - G128-26 (CANN) CAN communication signal - - - CHECK RADIO RECEIVER ASSEMBLY
for 12.3 Inch Display: Refer to TERMINALS OF ECU [09/2022 - ]
for 8 Inch Display: Refer to TERMINALS OF ECU [09/2022 - ]
