Parts Location [06/2018 - 10/2019]: Illustration

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

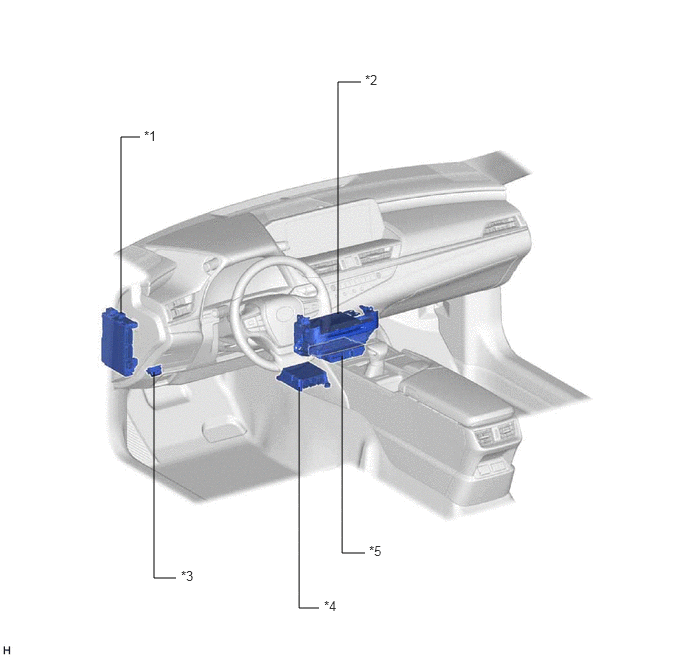

Fig 1: Safety Connect System Parts Location (Except Hybrid) (06/2018 - 10/2019) (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DCM FUSE - ECU-IG2 NO. 3 FUSE - ECU-ACC FUSE	*2	RADIO RECEIVER ASSEMBLY
*3	DLC3	*4	AIRBAG SENSOR ASSEMBLY
*5	DCM (TELEMATICS TRANSCEIVER)	-	-

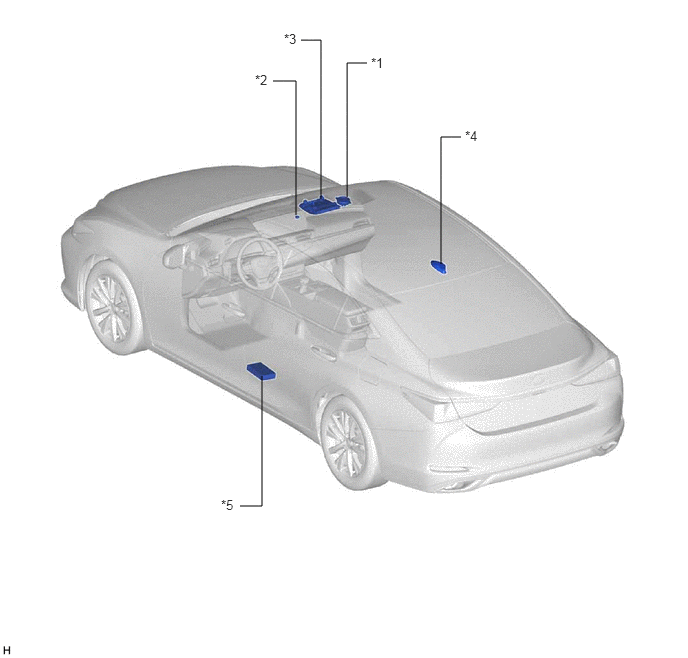

Fig 1: Safety Connect System Parts Location (Except Hybrid) (06/2018 - 10/2019) (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT NO. 2 SPEAKER ASSEMBLY	*2	TELEPHONE MICROPHONE ASSEMBLY
*3	MAP LIGHT SUB-ASSEMBLY - MANUAL (SOS) SWITCH	*4	TELEPHONE AND GPS ANTENNA ASSEMBLY (for Roof Side)
*5	STEREO COMPONENT AMPLIFIER ASSEMBLY	-	-

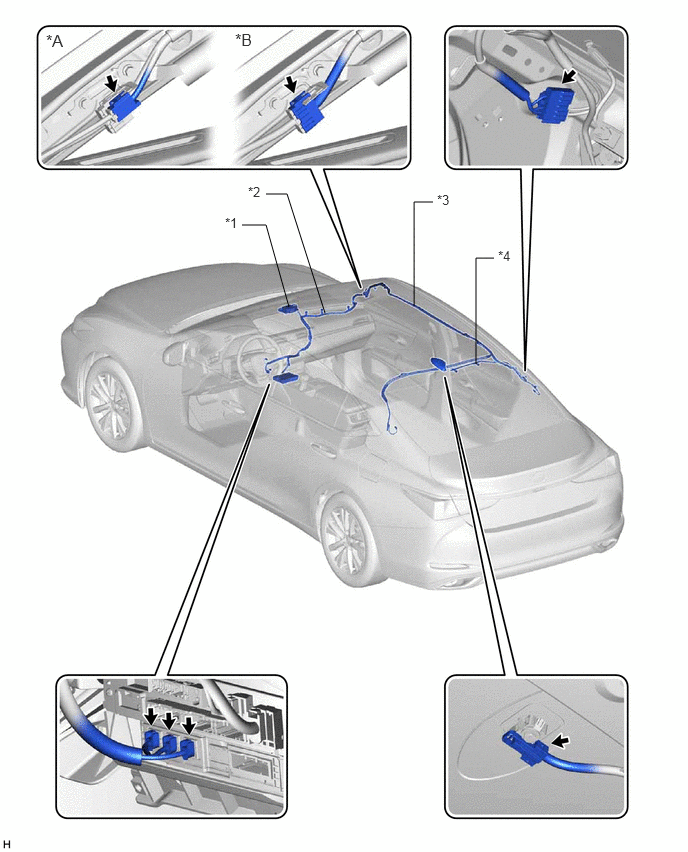

Fig 1: Safety Connect System Parts Location (Except Hybrid) (06/2018 - 10/2019) (3 of 3)

*A	w/ SXM Function	*B	w/o SXM Function
*1	TELEPHONE AND GPS ANTENNA ASSEMBLY (for Front Side)	*2	TELEPHONE AND GPS ANTENNA CORD (ANTENNA CORD SUB-ASSEMBLY)
*3	TELEPHONE AND GPS ANTENNA CORD (NO. 2 ANTENNA CORD SUB-ASSEMBLY)	*4	TELEPHONE AND GPS ANTENNA CORD (NO. 3 ANTENNA CORD SUB-ASSEMBLY)
