Components [08/2020 - ]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Oil Pressure And Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

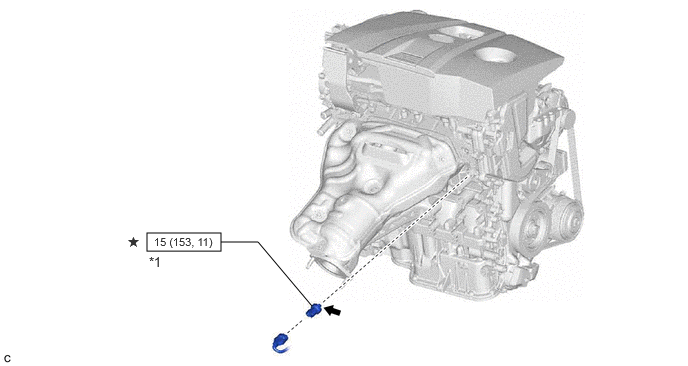

Fig 2: Oil Pressure And Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
| *1 | OIL PRESSURE AND TEMPERATURE SENSOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | Adhesive 1344 | ||
| * | Precoated part | - | - |
