Parts Location [06/2018 - 07/2019]: Illustration

WARNING: This page is about a different car, the 2022 Lexus ES 300h, 2021 Lexus ES 300h, 2020 Lexus ES 300h, and 2019 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

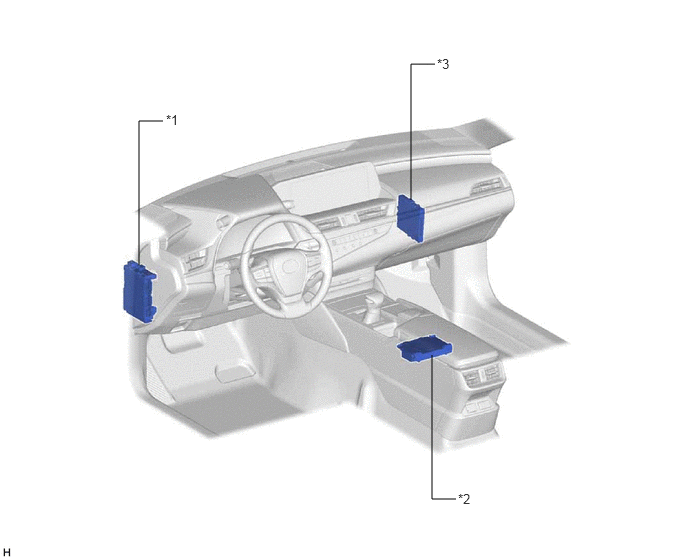

Fig 1: Wireless Charging System (For Hv Model) Replacement Components [06/2018 - 07/2019]
GTY827369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-ACC FUSE
- PANEL FUSE
- ECU-DCC NO. 2 FUSE		 *2 MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
*3 CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - -
