Components [08/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

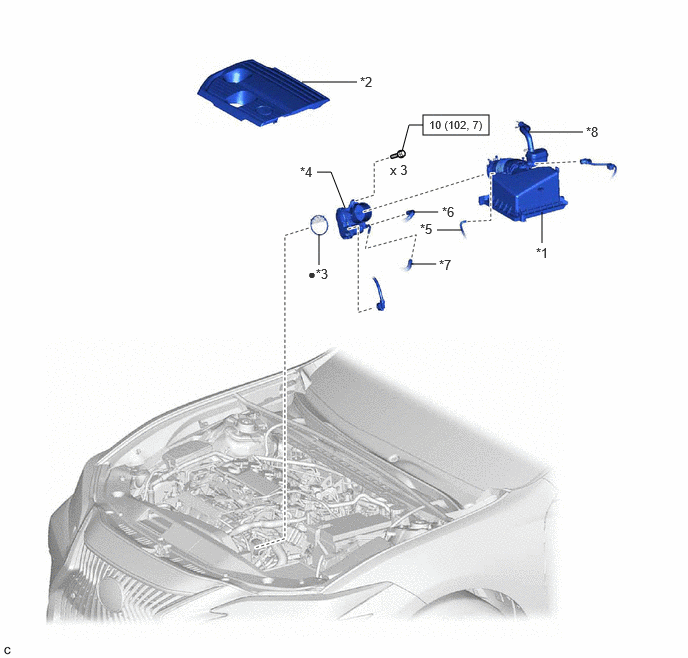

| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | THROTTLE BODY GASKET | *4 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *5 | VACUUM HOSE | *6 | NO. 6 WATER BY-PASS HOSE |
| *7 | NO. 5 WATER BY-PASS HOSE | *8 | NO. 2 VENTILATION HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
