Installation [08/2020 - ]: Procedure
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL KNOCK CONTROL SENSOR
HINT:
Perform "Inspection After Repair" after replacing the knock control sensor.
Refer to INITIALIZATION [08/2020 - ]

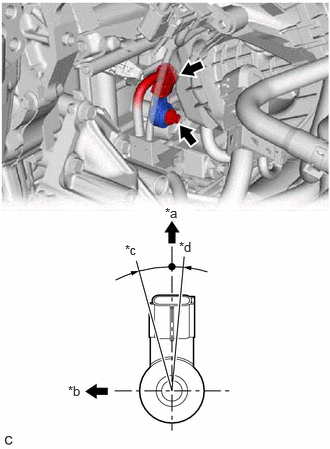

- Install the knock control sensor to the cylinder block sub-assembly with the bolt so that the knock control sensor installation position is as shown in the illustration.
Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)
*a Top *b Right of Vehicle *c 15° *d 5° NOTE:- If the knock control sensor has been struck or dropped, replace it.
- Make sure that the knock control sensor is in the correct position.
- Connect the knock control sensor connector.
- Install the knock control sensor to the cylinder block sub-assembly with the bolt so that the knock control sensor installation position is as shown in the illustration.
- INSTALL GENERATOR ASSEMBLY
Refer to INSTALLATION [08/2020 - ]
- PERFORM INITIALIZATION
- Perform "Inspection After Repair" after replacing the knock control sensor.
Refer to INITIALIZATION [08/2020 - ]
- Perform "Inspection After Repair" after replacing the knock control sensor.
