Removal [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 20 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 20 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 20 [09/2022 - ]

REMOVE NO. 3 BRAKE TUBE CLAMP

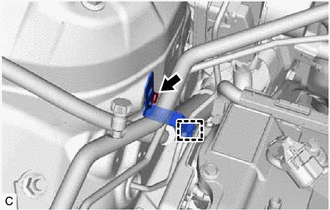

Disengage the 3 clamps and remove the piping clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When removing and installing the piping clamp, be careful not to deform the suction pipe sub-assembly or air conditioning tube and accessory assembly.

Remove the bolt to separate the No. 3 brake tube clamp from the vehicle body.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the clamp and remove the No. 3 brake tube clamp.

REMOVE NO. 2 ENGINE COVER
Refer to PROCEDURE - Step 5 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 5 [09/2022 - ]

REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

Disconnect the cam timing oil control solenoid assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing gear cover assembly.
NOTE:
If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

REMOVE O-RING

HINT:

Perform this procedure only when replacement of the O-ring is necessary.

Remove the O-ring from the cam timing oil control solenoid assembly.

NOTE:

When removing the O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.
If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.
