Components [08/2020 - 08/2021]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

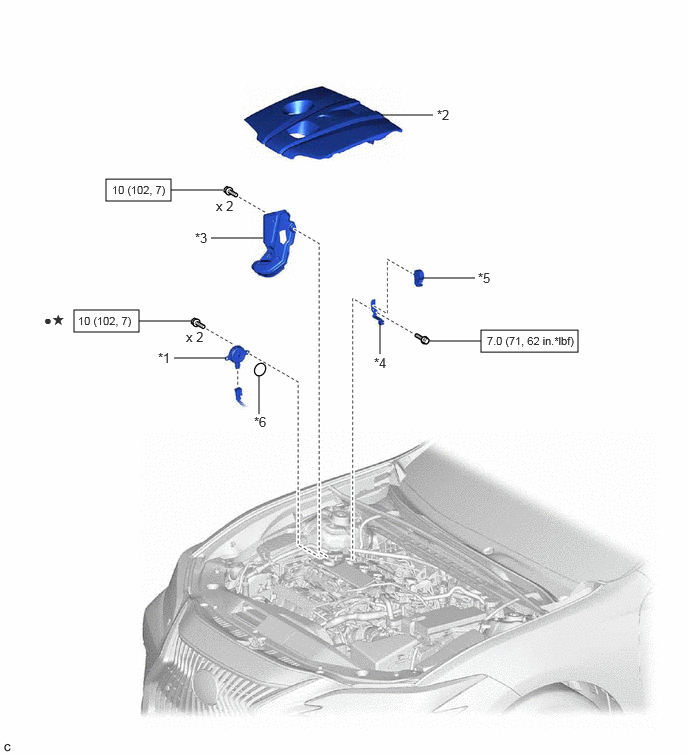

Fig 1: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications [08/2020 - 08/2021]
| *1 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | NO. 2 ENGINE COVER | *4 | NO. 3 BRAKE TUBE CLAMP |
| *5 | PIPING CLAMP | *6 | O-RING |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
