Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

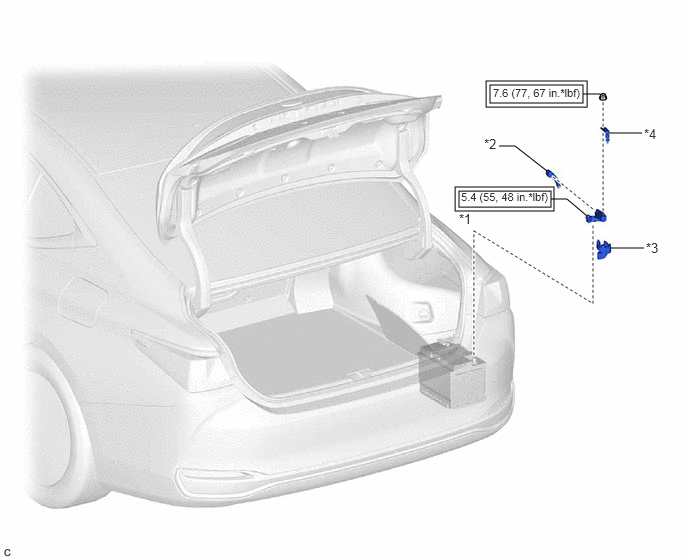

Fig 1: Battery Current Sensor Replacement Components With Torque Specifications

*1	BATTERY STATE SENSOR ASSEMBLY	*2	WIRE HARNESS
*3	BATTERY CURRENT SENSOR HOLDER	*4	NO. 2 FRAME WIRE
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
