Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

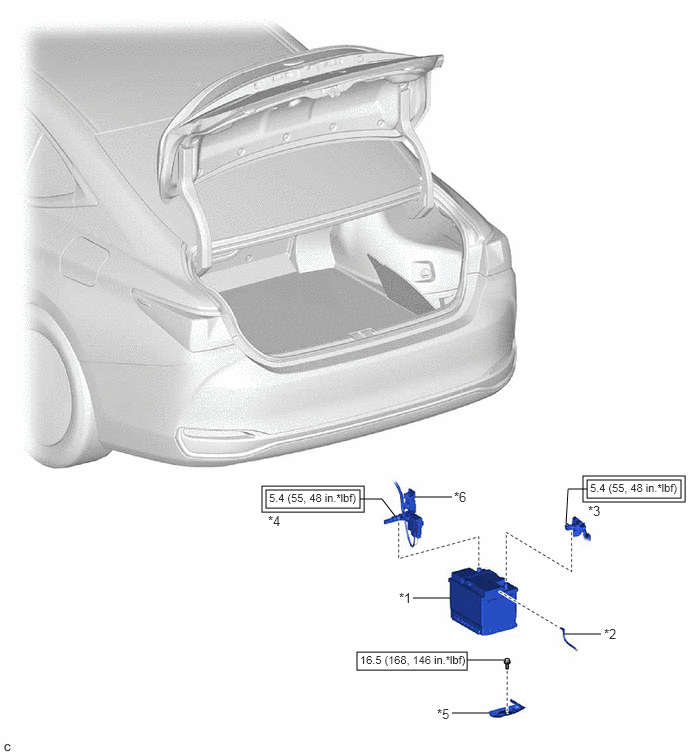

| *1 | AUXILIARY BATTERY | *2 | BATTERY HOSE |
| *3 | NEGATIVE AUXILIARY BATTERY TERMINAL | *4 | POSITIVE AUXILIARY BATTERY TERMINAL |
| *5 | NO. 3 BATTERY CLAMP | *6 | TERMINAL CONNECTOR COVER |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
