Parts Location [08/2021 - ]: Illustration
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
FRONT ENGINE MOUNTING INSULATOR |
*2 |
CANISTER |
| *3 |
FUEL PUMP (for Low Pressure Side) |
*4 |
MASS AIR FLOW METER SUB-ASSEMBLY |
| *5 |
PARK / NEUTRAL POSITION SWITCH ASSEMBLY |
*6 |
VACUUM SWITCHING VALVE (for Active Control Engine Mount System) |
| *7 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
*8 |
FUEL PUMP CONTROL ECU |
| *9 |
CANISTER PUMP MODULE |
*10 |
ECM |
| *11 |
FLOW SHUTTING VALVE (for ATF Control) (NO. 1 WATER BY-PASS HOSE) |
*12 |
FLOW SHUTTING VALVE (for Heater Control) (WATER BY-PASS HOSE ASSEMBLY) |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
AIR FUEL RATIO SENSOR (Sensor 2) |
*2 |
ENGINE COOLANT TEMPERATURE SENSOR |
| *3 |
PORT FUEL INJECTOR ASSEMBLY |
*4 |
NO. 2 FUEL PRESSURE SENSOR (for Low Pressure Side) |
| *5 |
VACUUM SWITCHING VALVE (PURGE VSV) |
*6 |
WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
| *7 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
*8 |
CRANKSHAFT POSITION SENSOR |
| *9 |
DIRECT FUEL INJECTOR ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*2 |
CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 |
EGR VALVE ASSEMBLY |
*4 |
FUEL PRESSURE SENSOR (for High Pressure Side) |
| *5 |
KNOCK CONTROL SENSOR |
*6 |
MANIFOLD ABSOLUTE PRESSURE SENSOR |
| *7 |
ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

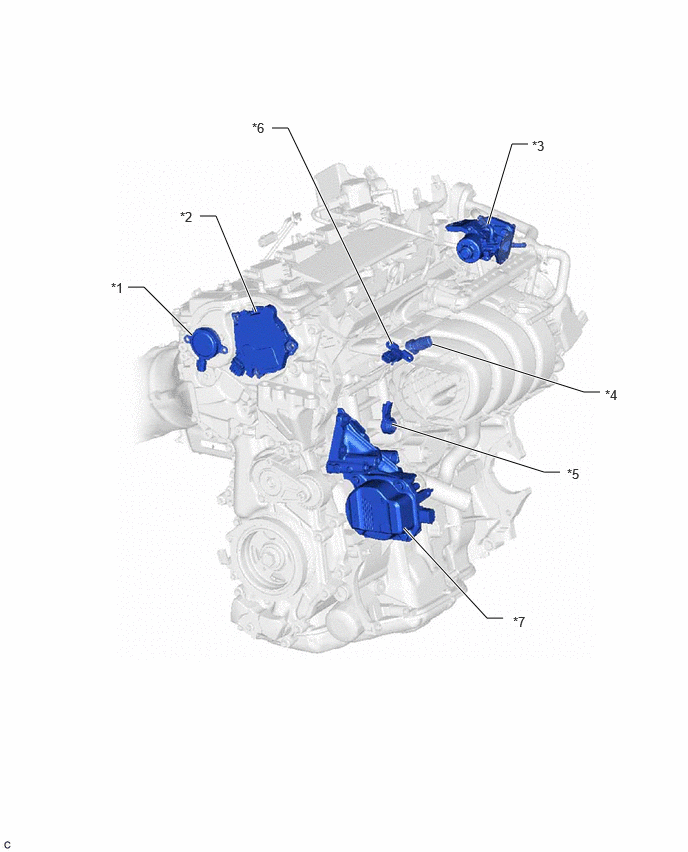

| *1 |
AIR FUEL RATIO SENSOR (Sensor 1) |
*2 |
FUEL PUMP ASSEMBLY (for High Pressure Side) |
| *3 |
OIL PRESSURE AND TEMPERATURE SENSOR |
*4 |
OIL PRESSURE CONTROL VALVE ASSEMBLY |
| *5 |
CAMSHAFT POSITION SENSOR (for Intake Camshaft) |
*6 |
CAMSHAFT POSITION SENSOR (for Exhaust Camshaft) |
| *7 |
IGNITION COIL ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
ACCELERATOR PEDAL SENSOR ASSEMBLY |
*2 |
TRANSMISSION CONTROL SWITCH (SHIFT LOCK CONTROL UNIT ASSEMBLY) |
| *3 |
STOP LIGHT SWITCH |
*4 |
COMBINATION METER ASSEMBLY |
| *5 |
DLC3 |
- |
- |
