DTC B242F: Open in B Power Line [07/2019 - 10/2019]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. For TMMK Made Before Sep. 2019 Production
    Fig 1: For TMMK Made Before Sep. 2019 Production [07/2019 - 10/2019]
    GTY800918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. For TMC Made or TMMK Made From Sep. 2019 Production

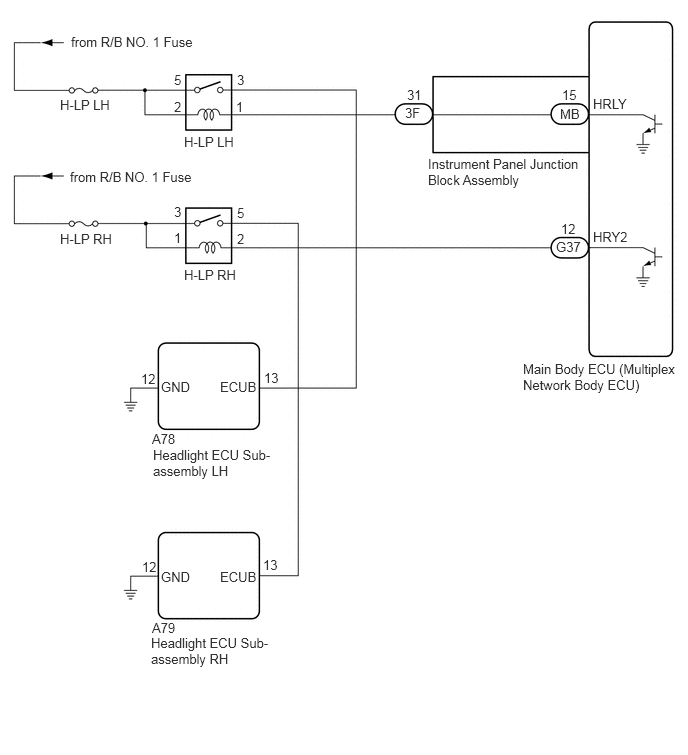

    Fig 2: For TMC Made or TMMK Made From Sep. 2019 Production [07/2019 - 10/2019]
    GTY960000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
