Parts Location [06/2018 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

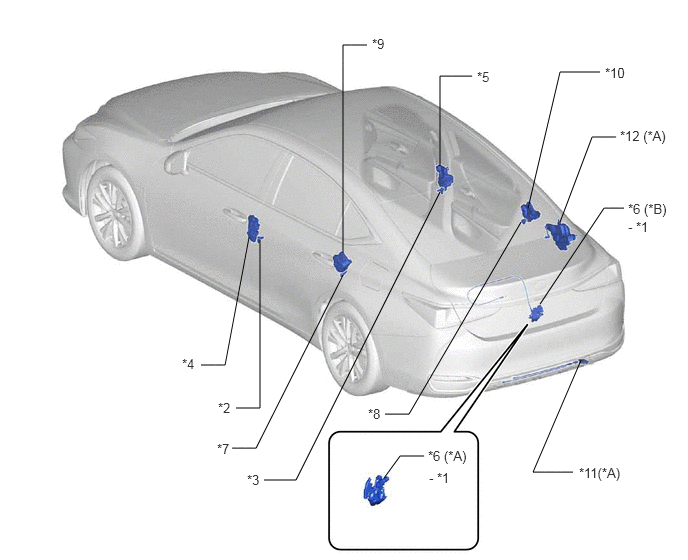

| *A | w/ Power Trunk Lid System | *B | w/o Power Trunk Lid System |
| *1 | LUGGAGE DOOR COURTESY LIGHT SWITCH | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH | *6 | LUGGAGE DOOR CLOSER ASSEMBLY |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *9 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *10 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *11 | KICK DOOR CONTROL SENSOR | *12 | LUGGAGE CLOSER MOTOR ASSEMBLY |

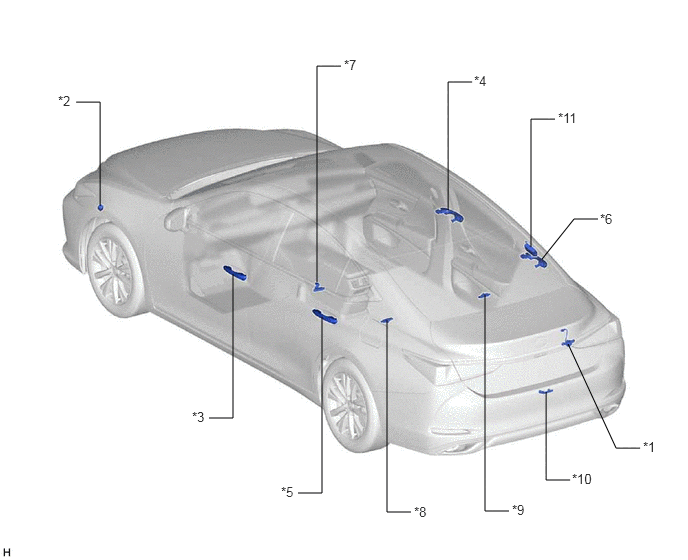

| *1 | LUGGAGE ELECTRICAL KEY SWITCH | *2 | WIRELESS DOOR LOCK BUZZER |
| *3 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
*4 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Front Passenger Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
| *5 | REAR DOOR OUTSIDE HANDLE ASSEMBLY LH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
*6 | REAR DOOR OUTSIDE HANDLE ASSEMBLY RH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
| *7 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) | *8 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) |
| *9 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT) | *10 | ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT) |
| *11 | ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY | - | - |
