Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

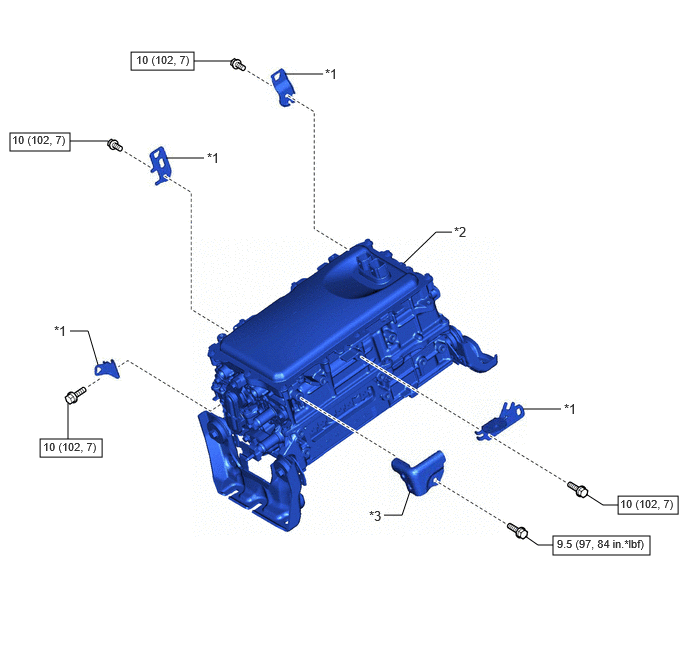

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
WIRE HARNESS CLAMP BRACKET |
*2 |
INVERTER WITH CONVERTER ASSEMBLY |
| *3 |
INVERTER PROTECTOR |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
INVERTER UPPER COVER |
*2 |
MOTOR GENERATOR CONTROL ECU KIT |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non - reusable part |
