Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |

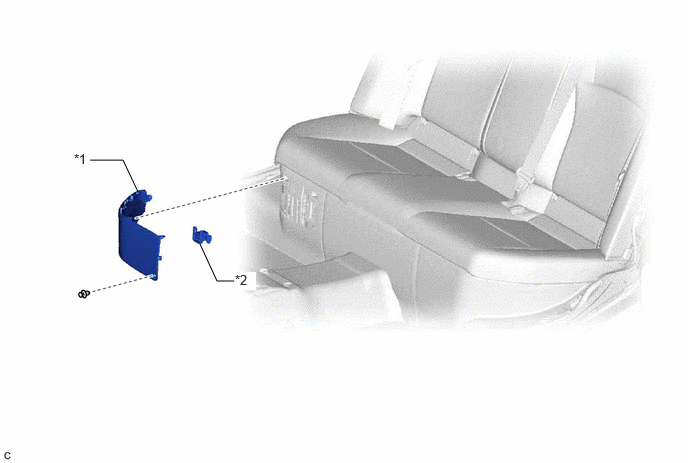

BATTERY SERVICE HOLE COVER |
*2 |
SERVICE PLUG GRIP |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |

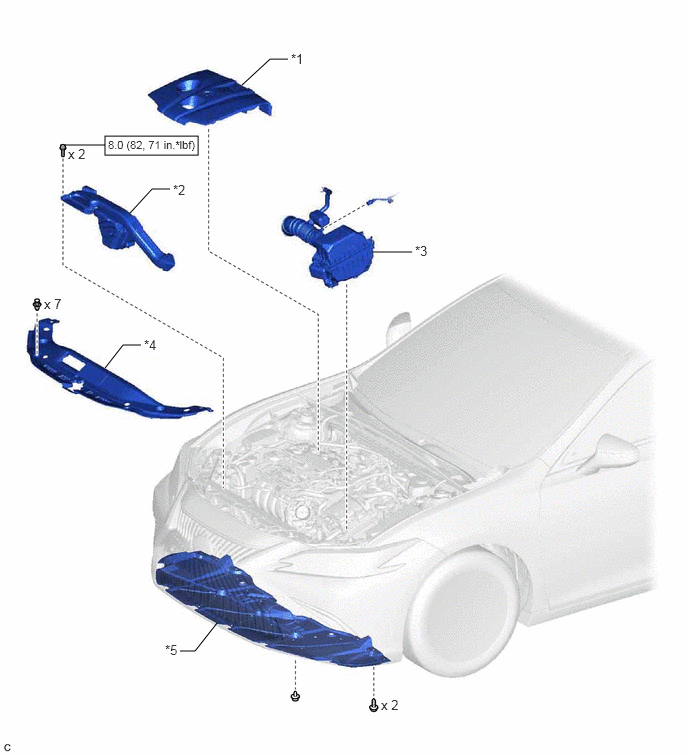

NO. 1 ENGINE COVER SUB-ASSEMBLY |
*2 |
INLET AIR CLEANER ASSEMBLY |
| *3 |
AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
*4 |
COOL AIR INTAKE DUCT SEAL |
| *5 |
NO. 1 ENGINE UNDER COVER |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |

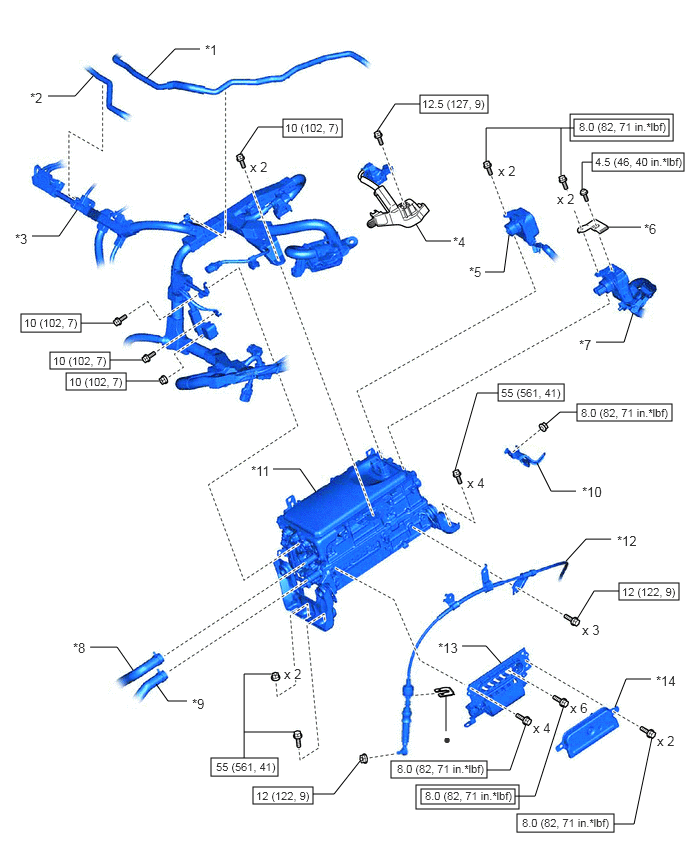

NO. 1 FUEL VAPOR FEED HOSE |
*2 |
NO. 2 FUEL VAPOR FEED HOSE |
| *3 |
ENGINE WIRE |
*4 |
ENGINE ROOM MAIN WIRE |
| *5 |
HV AIR CONDITIONING WIRE |
*6 |
CONNECTOR COVER ASSEMBLY |
| *7 |
HV FLOOR UNDER WIRE |
*8 |
NO. 1 INVERTER COOLING HOSE |
| *9 |
NO. 4 INVERTER COOLING HOSE |
*10 |
WIRE HARNESS CLAMP BRACKET |
| *11 |
INVERTER WITH CONVERTER ASSEMBLY |
*12 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
| *13 |
MOTOR CABLE |
*14 |
INVERTER COVER |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |

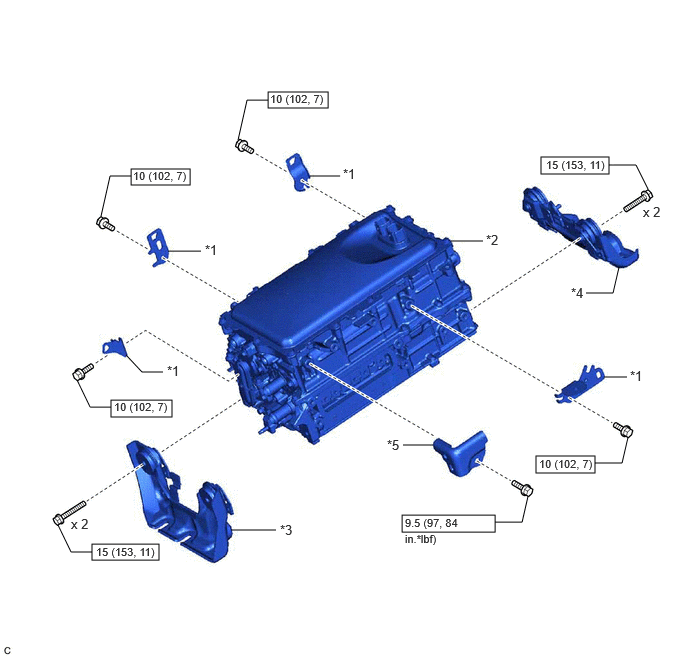

WIRE HARNESS CLAMP BRACKET |
*2 |
INVERTER WITH CONVERTER ASSEMBLY |
| *3 |
NO. 1 INVERTER BRACKET |
*4 |
NO. 2 INVERTER BRACKET |
| *5 |
INVERTER PROTECTOR |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
