Components [08/2020 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Battery ECU (for Lithium-Ion Battery) Replacement Components With Torque Specifications (1 Of 4)
| *1 | BATTERY SERVICE HOLE COVER | *2 | SERVICE PLUG GRIP |
Fig 2: Battery ECU (for Lithium-Ion Battery) Replacement Components With Torque Specifications (2 Of 4)
| *1 | CONNECTOR COVER ASSEMBLY | *2 | ENGINE ROOM MAIN WIRE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
Fig 3: Battery ECU (for Lithium-Ion Battery) Replacement Components With Torque Specifications (3 Of 4)
| *1 | REAR UNDER COVER | *2 | REAR UNDER SIDE COVER LH |
| *3 | REAR UNDER SIDE COVER RH | *4 | REAR SEAT CUSHION LEG SUB-ASSEMBLY |
| *5 | REAR DOOR SCUFF PLATE RH | *6 | REAR DOOR SCUFF PLATE LH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

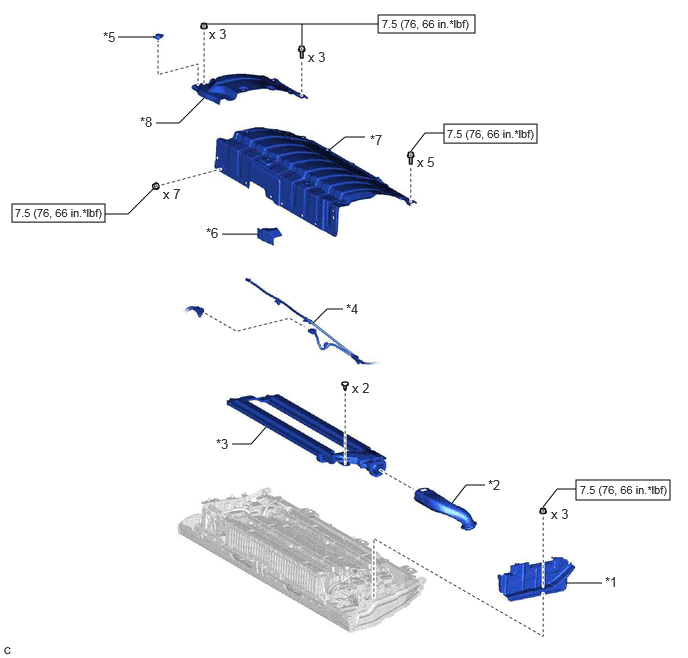

Fig 4: Battery ECU (for Lithium-Ion Battery) Replacement Components With Torque Specifications (4 Of 4)
| *1 | BATTERY ECU ASSEMBLY | *2 | HYBRID BATTERY HOSE ASSEMBLY |
| *3 | NO. 1 HV BATTERY HOSE | *4 | FLOOR WIRE |
| *5 | BATTERY COVER LOCK STRIKER | *6 | NO. 4 HV BATTERY PROTECTOR |
| *7 | UPPER HV BATTERY COVER SUB-ASSEMBLY | *8 | NO. 1 HV BATTERY COVER PANEL RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
