System Diagram [08/2021 - 09/2022]

WARNING: This page is about a different car, the 2022 Lexus ES 300h, 2021 Lexus ES 300h, 2020 Lexus ES 300h, and 2019 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

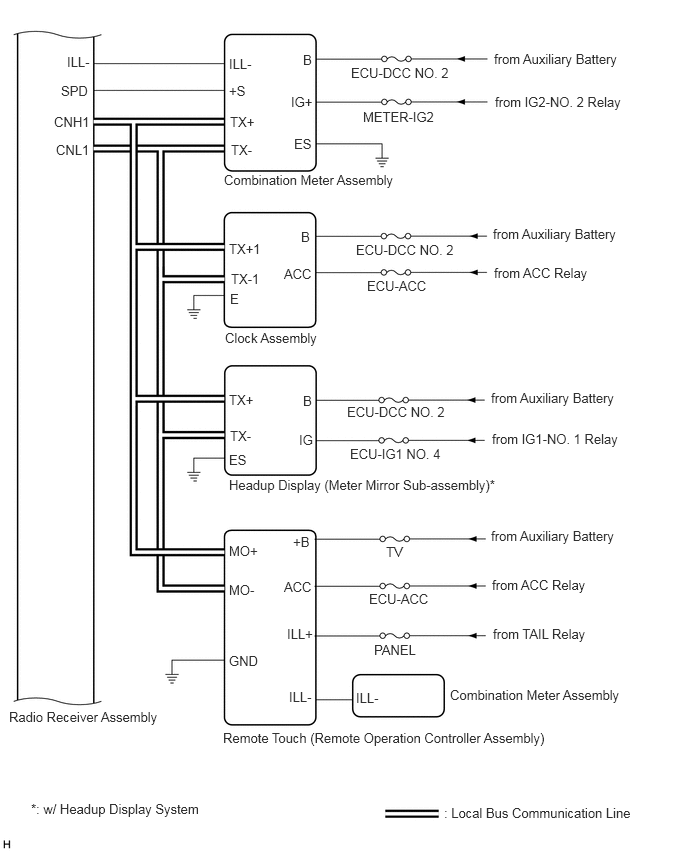

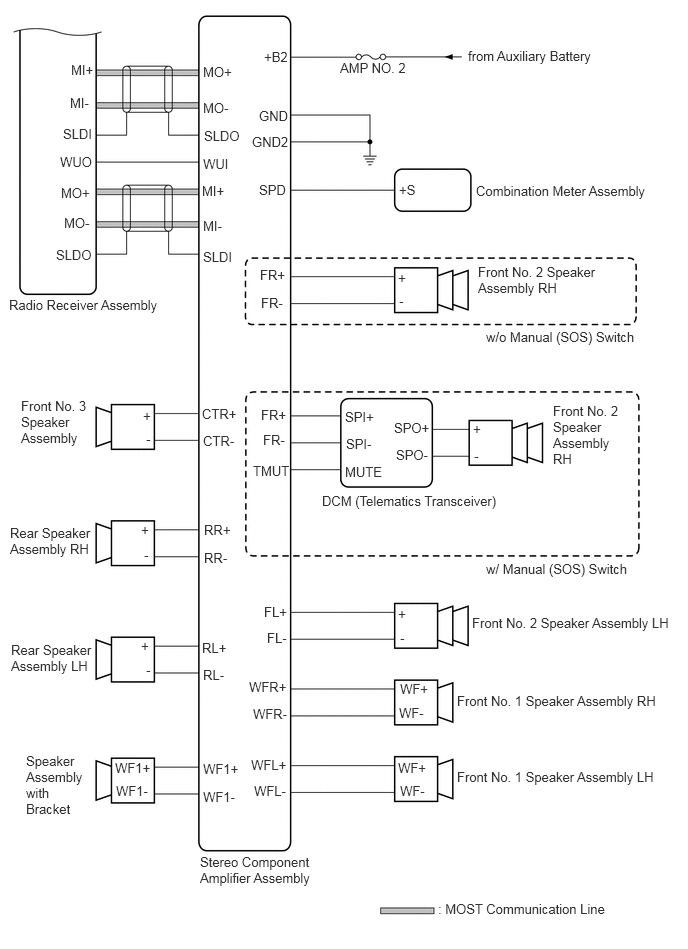

Fig 1: Navigation System Wiring Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

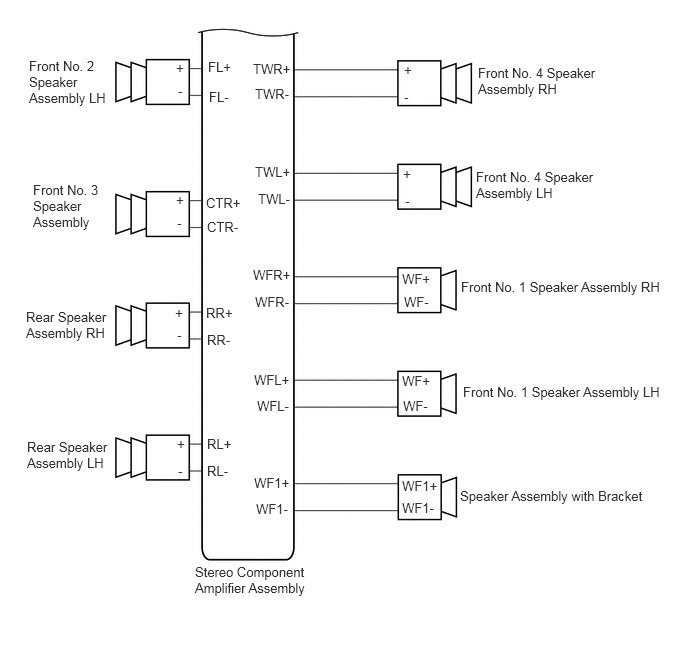

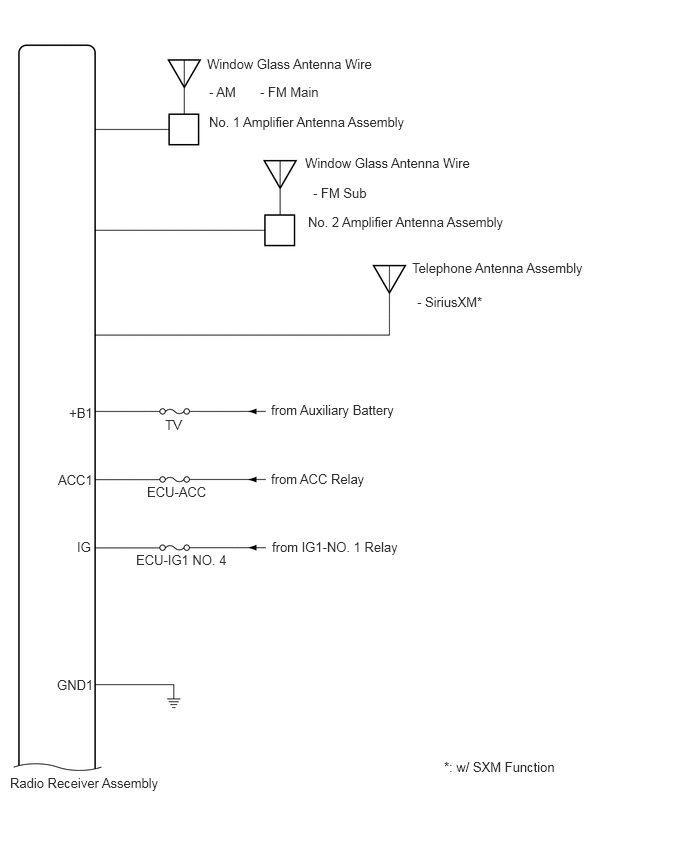

Fig 2: Navigation System Wiring Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

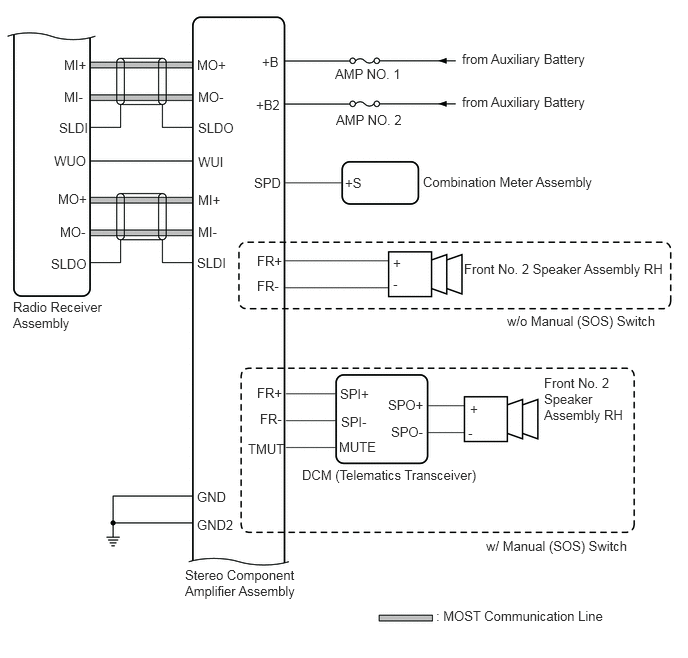

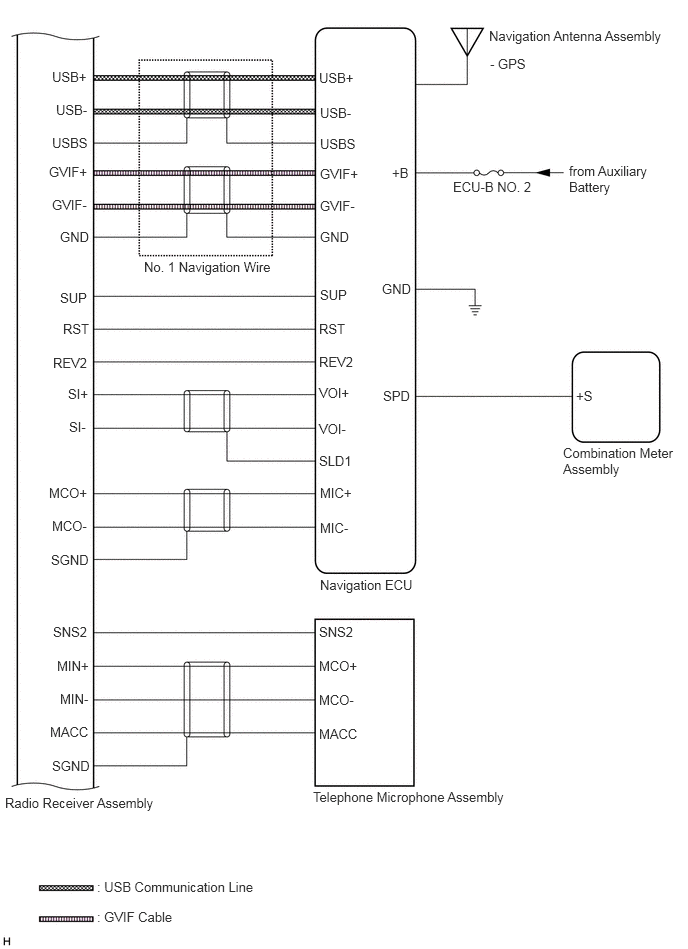

Fig 3: Navigation System Wiring Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

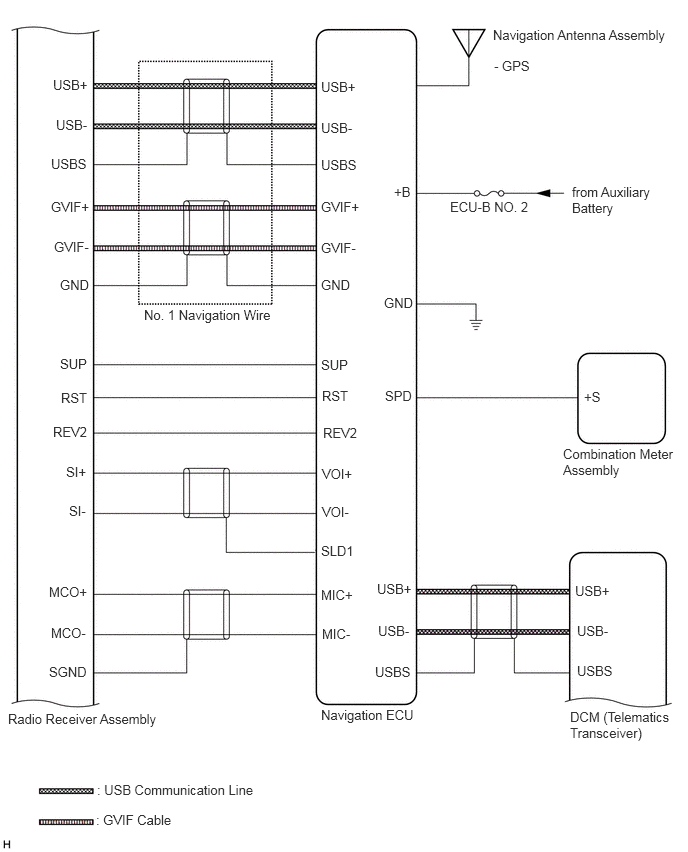

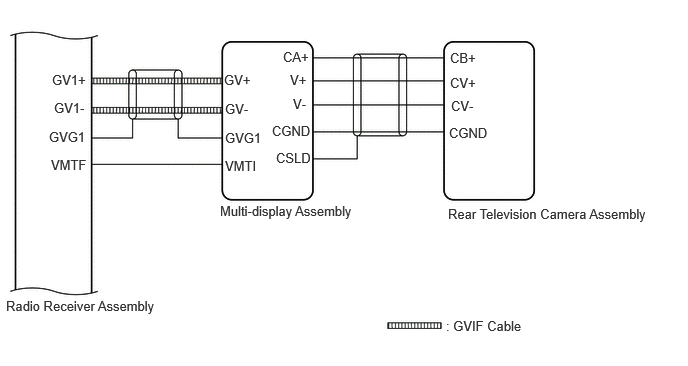

Fig 4: Navigation System Wiring Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Parking Assist Monitor System

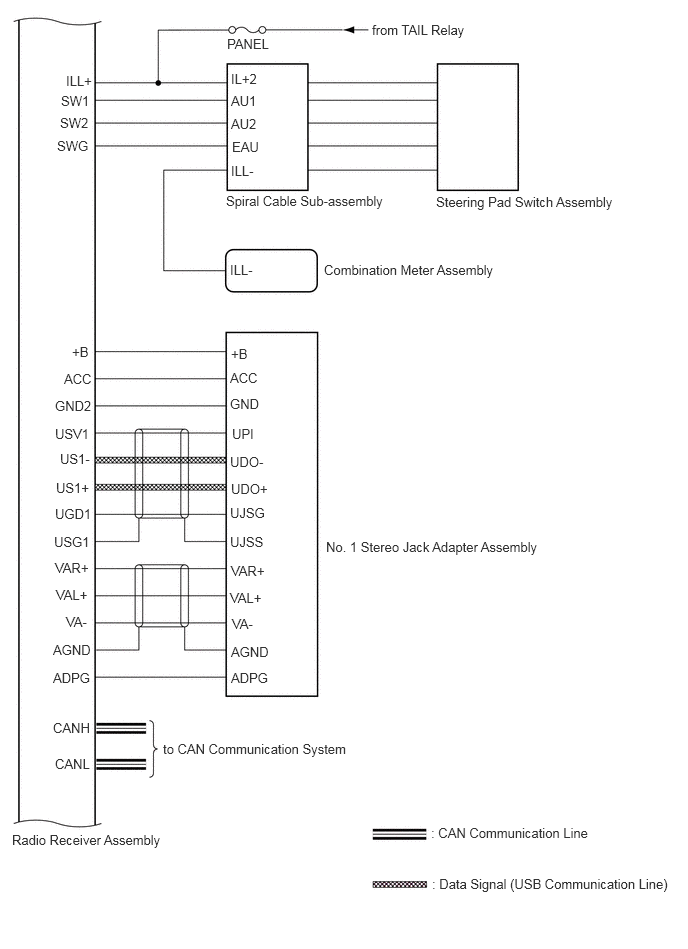

Fig 5: Navigation System Wiring Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Panoramic View Monitor System

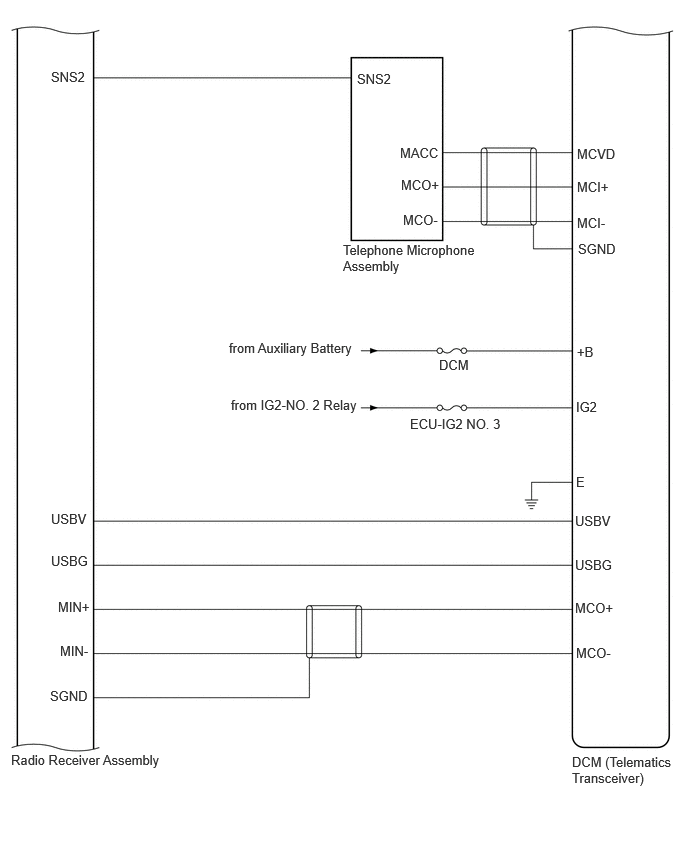

Fig 6: Navigation System Wiring Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Manual (SOS) Switch

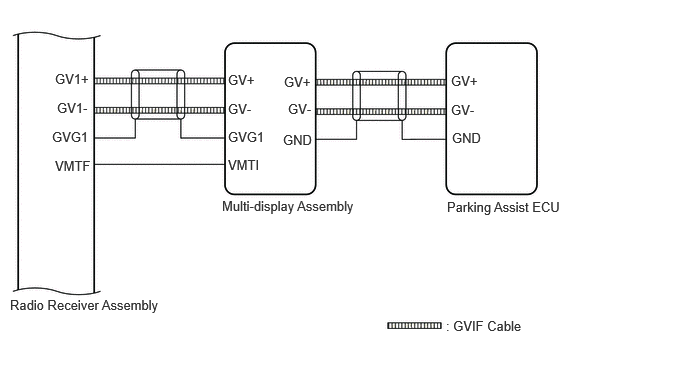

Fig 7: Navigation System Wiring Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Manual (SOS) Switch

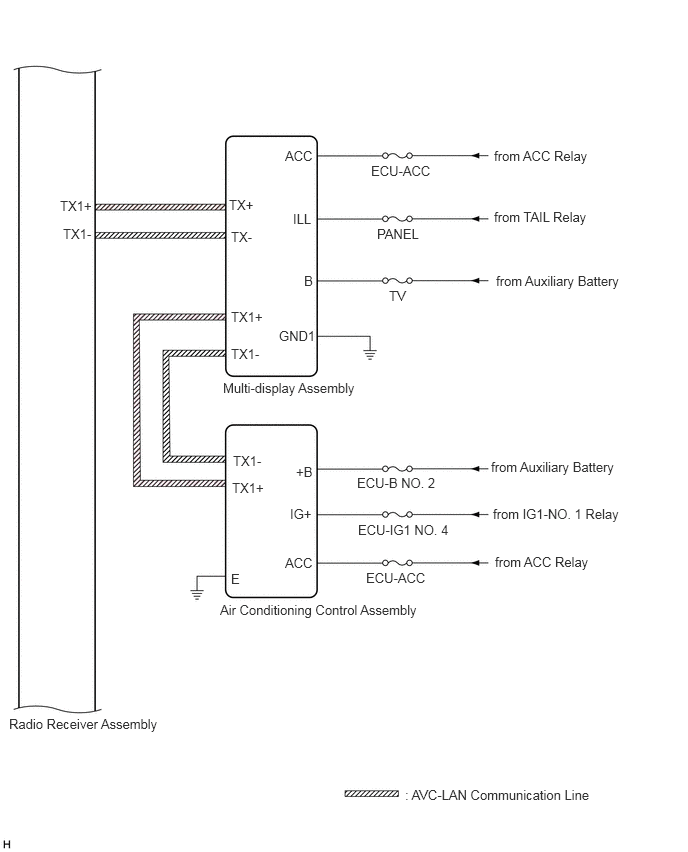

Fig 8: Navigation System Wiring Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Manual (SOS) Switch

Fig 9: Navigation System Wiring Diagram (9 Of 12)

for 10 Speakers

Fig 10: Navigation System Wiring Diagram (10 Of 12)

for 17 Speakers

Fig 11: Navigation System Wiring Diagram (11 Of 12)

for 17 Speakers

Fig 12: Navigation System Wiring Diagram (12 Of 12)
