Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter [06/2018 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2022 Lexus ES 300h, 2021 Lexus ES 300h, 2020 Lexus ES 300h, and 2019 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT COMBINATION METER ASSEMBLY (OUTPUT WAVEFORM)
    1. Check the output waveform.

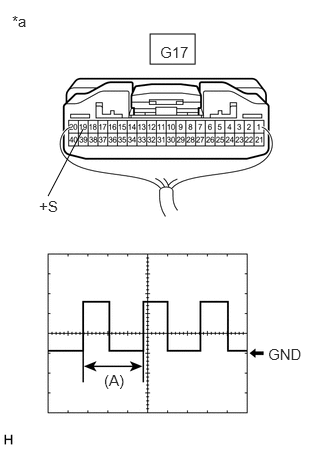

      GTY793689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Combination Meter Assembly)
      1. Remove the combination meter assembly with the connector(s) still connected.
      2. Connect an oscilloscope to terminal G17-19 (+S) and body ground.
      3. Turn the power switch on (IG).
      4. Turn a wheel slowly.
      5. Check the signal waveform according to the condition(s) in the table below.
        Item Condition
        Measurement terminal G17-19 (+S) - Body ground
        Tool setting 5 V/DIV., 20 ms./DIV.
        Vehicle condition Wheel being rotated

        OK

        The waveform is similar to that shown in the illustration.

        HINT:

        When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    GO TO METER / GAUGE SYSTEM. Refer to  Speed Signal Circuit [06/2018 - 09/2022]

    Result:

    OK

    See step  2

  2. INSPECT STEREO COMPONENT AMPLIFIER ASSEMBLY (INPUT WAVEFORM)
    1. Check the input waveform.

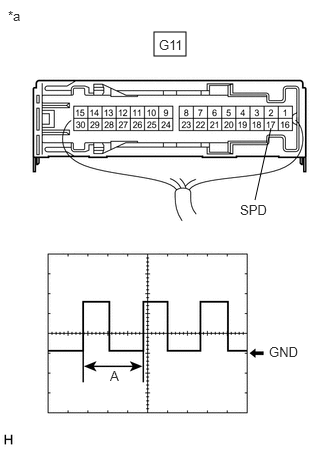

      GTY787514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Stereo Component Amplifier Assembly)
      1. Remove the stereo component amplifier assembly with the connector(s) still connected.
      2. Connect an oscilloscope to terminal G11-17 (SPD) and body ground.
      3. Turn the power switch on (IG).
      4. Turn a wheel slowly.
      5. Check the signal waveform according to the condition(s) in the table below.
        Item Condition
        Measurement terminal G11-17 (SPD) - Body ground
        Tool setting 5 V/DIV., 20 ms./DIV.
        Vehicle condition Wheel being rotated

        OK

        The waveform is similar to that shown in the illustration.

        HINT:

        When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [06/2018 - 10/2019]  , or refer to  PROBLEM SYMPTOMS TABLE [10/2019 - 08/2020]  , or refer to  PROBLEM SYMPTOMS TABLE [08/2020 - 08/2021]  , or refer to  PROBLEM SYMPTOMS TABLE [08/2021 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (STEREO COMPONENT AMPLIFIER ASSEMBLY - COMBINATION METER ASSEMBLY)
