Terminals Of Ecu [08/2020 - ]
WARNING: This page is about a different car, the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, and 2021 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

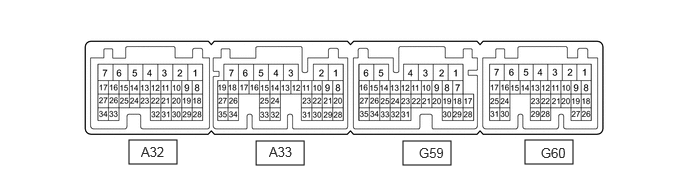

- HYBRID VEHICLE CONTROL ECU
Terminal No.
(Symbol)Wiring Color Terminal Description Input/Output Condition Specified Condition A32-1 (+B2) - G59-6 (E1) W - W-B Power source Input Power switch on (IG) 11 to 14 V A32-3 (IG2) - G59-6 (E1) B - W-B Power source Input Power switch on (IG) 11 to 14 V A32-8 (VCP2) - A32-18 (EPA2) SB - P Accelerator pedal sensor assembly power source (for VPA2) Output Power switch on (IG) 4.5 to 5.5 V A32-9 (VCPA) - A32-20 (EPA) BE - L Accelerator pedal sensor assembly power source (for VPA) Output Power switch on (IG) 4.5 to 5.5 V A32-13 (IWP) - G59-6 (E1) L - W-B Inverter water pump with motor assembly signal Output Power switch on (READY) Pulse generation
(Waveform 1)A32-14 (NIWP) - G59-6 (E1) W - W-B Inverter water pump with motor assembly signal Input Power switch on (READY) Pulse generation
(Waveform 1)A32-15 (STP) - G59-6 (E1) GR - W-B Stop light switch Input Brake pedal depressed 11 to 14 V Brake pedal released 0 to 1.5 V A32-17 (LIN3) - G59-6 (E1) L - W-B LIN communication signal (A/C inverter, auxiliary battery state sensor) Input/Output Power switch on (READY) Pulse generation A32-21 (TTA) - A32-31 (ETTA) GR - SB Transmission fluid temperature sensor Input Power switch on (IG), temperature 25°C (77°F) 3.6 to 4.6 V Power switch on (IG), temperature 60°C (140°F) 2.2 to 3.2 V A32-22 (ACCI) - G59-6 (E1) P - W-B ACC relay Input Power switch on (ACC) 11 to 14 V A32-24 (MMT) - A32-23 (MMTG) L - Y Motor temperature sensor Input Power switch on (IG), temperature 25°C (77°F) 3.6 to 4.6 V Power switch on (IG), temperature 60°C (140°F) 2.2 to 3.2 V A32-26 (GMT) - A32-27 (GMTG) P - V Generator temperature sensor Input Power switch on (IG), temperature 25°C (77°F) 3.6 to 4.6 V Power switch on (IG), temperature 60°C (140°F) 2.2 to 3.2 V A32-28 (VPA2) - A32-18 (EPA2) GR - P Accelerator pedal sensor assembly (for accelerator pedal position detection) Input Power switch on (IG), accelerator pedal released 1.0 to 2.2 V Power switch on (IG), engine stopped, shift lever in P, accelerator pedal fully depressed 3.4 to 5.3 V A32-30 (VPA) - A32-20 (EPA) G - L Accelerator pedal sensor assembly (for accelerator pedal position detection) Input Power switch on (IG), accelerator pedal released 0.4 to 1.4 V Power switch on (IG), engine stopped, shift lever in P, accelerator pedal fully depressed 2.6 to 4.5 V A33-1 (PSFT) - G59-6 (E1) L - W-B Shift lever position sensor power source Output Power switch on (ACC) 6.0 to 14 V A33-2 (BL) - G59-6 (E1) BE - W-B Back-up light Output Power switch on (IG), shift lever in R 11 to 14 V A33-4 (+B1) - G59-6 (E1) R - W-B Power source Input Power switch on (IG) 11 to 14 V A33-6 (MREL) - G59-6 (E1) G - W-B Main relay Output Power switch on (IG) 11 to 14 V A33-7 (IGB) - G59-6 (E1) B - W-B Power source Input Power switch on (IG) 8.5 to 14 V A33-12 (HSDN) - G59-6 (E1) W - W-B MG ECU shutdown signal Output Power switch on (READY) 0 to 1.5 V A33-13 (ILK) - G59-6 (E1) GR - W-B Interlock switch Input Power switch on (IG), service plug grip installed correctly 0 to 1.5 V Power switch on (IG), service plug grip not installed 11 to 14 V A33-14 (DB2) - G59-6 (E1) V - W-B Shift lever position signal Input Power switch on (IG), shift lever in D or S 6.0 to 14 V Power switch on (IG), shift lever not in D or S 0 to 1.5 V A33-15 (R) - G59-6 (E1) LG - W-B Shift lever position signal Input Power switch on (IG), shift lever in R 6.0 to 14 V Power switch on (IG), shift lever not in R 0 to 1.5 V A33-17 (PR) - G59-6 (E1) R - W-B Shift lever position signal Input Power switch on (IG), shift lever in P or R 6.0 to 14 V Power switch on (IG), shift lever not in P or R 0 to 1.5 V A33-20 (N) - G59-6 (E1) G - W-B Shift lever position signal Input Power switch on (IG), shift lever in N 6.0 to 14 V Power switch on (IG), shift lever not in N 0 to 1.5 V A33-21 (P) - G59-6 (E1) BE - W-B Shift lever position signal Input Power switch on (IG), shift lever in P 6.0 to 14 V Power switch on (IG), shift lever not in P 0 to 1.5 V A33-26 (DB1) - G59-6 (E1) W - W-B Shift lever position signal Input Power switch on (IG), shift lever in D or S 6.0 to 14 V Power switch on (IG), shift lever not in D or S 0 to 1.5 V A33-28 (ST1-) - G59-6 (E1) LG - W-B Stop light switch signal Input Power switch on (IG), brake pedal depressed 0 to 1.5 V Power switch on (IG), brake pedal released 11 to 14 V A33-30 (HMCL) - G59-6 (E1) W - W-B MG ECU communication request signal Input/Output Power switch on (IG) Pulse generation
(Waveform 2)A33-31 (HMCH) - G59-6 (E1) B - W-B MG ECU communication request signal Input/Output Power switch on (IG) Pulse generation
(Waveform 2)A33-34 (PNB) - G59-6 (E1) B - W-B Shift lever position signal Input Power switch on (IG), shift lever in P or N 6.0 to 14 V G59-1 (SMRG) - G59-5 (E01) G - W-B System main relay operation signal Output Power switch on (IG) → Power switch on (READY) Pulse generation
(Waveform 3)G59-3 (SMRP) - G59-5 (E01) W - W-B System main relay operation signal Output Power switch on (IG) → Power switch on (READY) Pulse generation
(Waveform 3)G59-4 (SMRB) - G59-5 (E01) GR - W-B System main relay operation signal Output Power switch on (IG) → Power switch on (READY) Pulse generation
(Waveform 3)G59-8 (INDR) - G59-6 (E1) LG - W-B Shift position indicator signal Input Power switch on (IG), shift lever in R 0 to 3.2 V Power switch on (IG), shift lever not in R 11 to 14 V G59-9 (ST2) - G59-6 (E1) L - W-B Starter signal Input Power switch on (IG) 0 to 1.5 V G59-10 (NORM) ←→ G59-6(E1) LG - W-B Drive mode select switch signal Input Power switch on (IG), drive mode select switch not pushed 11 to 14 V Power switch on (IG), drive mode select switch being pushed and held 0 to 1.5 V G59-34 (CA4H) ←→ G59-6 (E1) V - W-B CAN communication signal Input/Output Power switch on (IG) Pulse generation
(Waveform 4)G59-35 (CA4L) ←→ G59-6 (E1) W - W-B CAN communication signal Input/Output Power switch on (IG) Pulse generation
(Waveform 4)G60-1 (M) - G59-6 (E1) B - W-B Transmission control Input Power switch on (IG), shift lever in S 11 to 14 V Power switch on (IG), shift lever not in S 0 to 1.5 V G60-3 (BATT) - G59-6 (E1) L - W-B Constant power source Input Power switch on (IG) 11 to 14 V Power switch on (READY) 11 to 15.5 V G60-6 (SPRT) - G59-6 (E1) BE - W-B Drive mode select switch signal Input Power switch on (IG), drive mode select switch not turned 11 to 14 V Power switch on (IG), drive mode switch being turned and held at Sport position 0 to 1.5 V G60-7 (PLKC) - G59-6 (E1) L - W-B Shift lock release request signal Output Power switch on (READY), brake pedal depressed 11 to 14 V Power switch on (READY), brake pedal released 0 to 1.5 V G60-8 (SFTD) - G59-6 (E1) W - W-B Transmission control Input Power switch on (IG), shift lever in S 11 to 14 V Power switch on (IG), shift lever in (-) or shift paddle switch LH (-) operated 0 to 1.5 V G60-9 (SFTU) - G59-6 (E1) LG - W-B Transmission control Input Power switch on (IG), shift lever in S 11 to 14 V Power switch on (IG), shift lever in (+) or shift paddle switch RH (+) operated 0 to 1.5 V G60-10 (INDM) - G59-6 (E1) LA-GR - W-B Shift position indicator signal Input Power switch on (IG), shift lever in S 0 to 3.2 V Power switch on (IG), shift lever not in S 11 to 14 V G60-11 (INDD) - G59-6 (E1) W - W-B Shift position indicator signal Input Power switch on (IG), shift lever in D 0 to 3.2 V Power switch on (IG), shift lever not in D 11 to 14 V G60-12 (INDN) - G59-6 (E1) R - W-B Shift position indicator signal Input Power switch on (IG), shift lever in N 0 to 3.2 V Power switch on (IG), shift lever not in N 11 to 14 V G60-13 (INDP) - G59-6 (E1) B - W-B Shift position indicator signal Input Power switch on (IG), shift lever in P 0 to 3.2 V Power switch on (IG), shift lever not in P 11 to 14 V G60-14 (ABFS) - G59-6 (E1) B - W-B Airbag activation signal Input Power switch on (READY) Pulse generation
(Waveform 5)G60-15 (EVSW) - G59-6 (E1) G - W-B Drive mode select switch signal Input Power switch on (IG), EV mode switch not pushed 11 to 14 V Power switch on (IG), EV mode switch being pushed and held 0 to 1.5 V G60-24 (CA1L) - G59-6 (E1) W - W-B CAN communication signal Input/Output Power switch on (IG) Pulse generation
(Waveform 6)G60-25 (CA1H) - G59-6 (E1) L - W-B CAN communication signal Input/Output Power switch on (IG) Pulse generation
(Waveform 6)G60-30 (CA3N) - G59-6 (E1) W - W-B CAN communication signal Input/Output Power switch on (IG) Pulse generation
(Waveform 7)G60-31 (CA3P) - G59-6 (E1) G - W-B CAN communication signal Input/Output Power switch on (IG) Pulse generation
(Waveform 7)- Oscilloscope waveforms
HINT:
Oscilloscope waveform samples are provided here for informational purposes. Noise and fluttering waveforms have been omitted.
- Waveform 1 (Inverter water pump assembly signal)
Item Content Terminal CH1: A32-13 (IWP) - G59-6 (E1)
CH2: A32-14 (NIWP) - G59-6 (E1)Equipment Setting 5 V/DIV., 20 ms./DIV. Condition Power switch on (READY) Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
The duty of the IWP signal and the frequency of the NIWP signal change according to the coolant (for inverter) temperature.
- Waveform 2 (MG ECU communication request signal)
Item Content Terminal CH1: A33-31 (HMCH) - G59-6 (E1)
CH2: A33-30 (HMCL) - G59-6 (E1)Equipment Setting 1 V/DIV., 50 μs./DIV. Condition Power switch on (IG) HINT:
The waveform will vary depending on the content of the digital communication (digital signal).
- Waveform 3 (System main relay operation signal)
Item Content Terminal CH1: G59-3 (SMRP) - G59-5 (E01)
CH2: G59-4 (SMRB) - G59-5 (E01)
CH3: G59-1 (SMRG) - G59-5 (E01)Equipment Setting 10 V/DIV., 200 ms./DIV. Condition Power switch on (IG) → Power switch on (READY) - Waveform 4 (CAN communication signal)
Item Content Terminal CH1: G59-34 (CA4H) - G59-6 (E1)
CH2: G59-35 (CA4L) - G59-6 (E1)Equipment Setting 1 V/DIV., 50 μs./DIV. Condition Power switch on (IG) HINT:
The waveform will vary depending on the content of the digital communication (digital signal).
- Waveform 5 (Airbag activation signal)
Item Content Terminal G60-14 (ABFS) - G59-6 (E1) Equipment Setting 5 V/DIV., 150 ms./DIV. Condition Power switch on (READY) - Waveform 6 (CAN communication signal)
Item Content Terminal CH1: G60-25 (CA1H) - G59-6 (E1)
CH2: G60-24 (CA1L) - G59-6 (E1)Equipment Setting 1 V/DIV., 50 μs./DIV. Condition Power switch on (IG) HINT:
The waveform will vary depending on the content of the digital communication (digital signal).
- Waveform 7 (CAN communication signal)
Item Content Terminal CH1: G60-31 (CA3P) - G59-6 (E1)
CH2: G60-30 (CA3N) - G59-6 (E1)Equipment Setting 1 V/DIV., 50 μs./DIV. Condition Power switch on (IG) HINT:
The waveform will vary depending on the content of the digital communication (digital signal).
