System Diagram [06/2018 - 08/2021]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

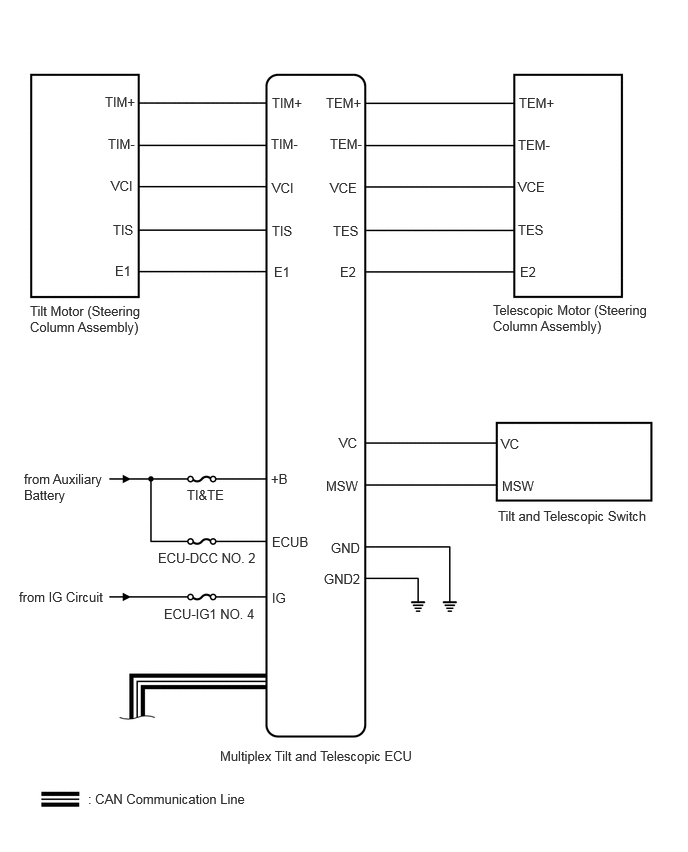

Fig 1: Power Tilt & Telescopic Steering Column Wiring Diagram (1 Of 2)
GTY815828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

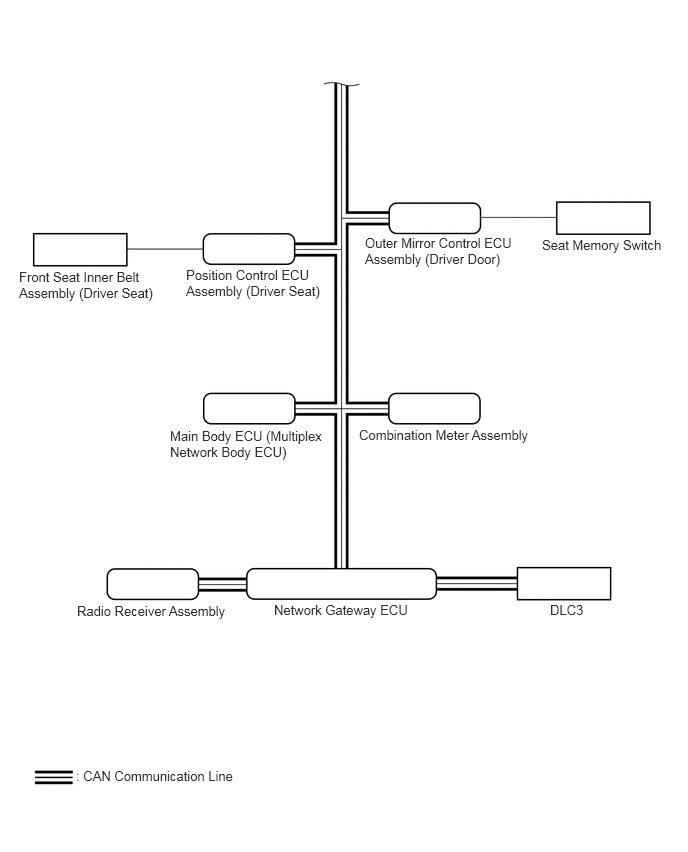

Fig 2: Power Tilt & Telescopic Steering Column Wiring Diagram (2 Of 2)
GTY794281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU
(Transmitter)		 Receiving ECU Signal Communication Method
Main Body ECU (Multiplex Network Body ECU) Multiplex Tilt and Telescopic ECU
  • IG SW signal
  • Store command of driver seat memory
  • Recall command of driver seat memory
  • Auto away/return state signal
 CAN
Position Control ECU Assembly (Driver Seat) Multiplex Tilt and Telescopic ECU
  • Memory recall signal
  • Start signal to play tilt and telescopic steering
  • Stop signal to play memory
Combination Meter Assembly Multiplex Tilt and Telescopic ECU Vehicle speed signal
Multiplex Tilt and Telescopic ECU Main Body ECU (Multiplex Network Body ECU) State signal of tilt and telescopic steering
Multiplex Tilt and Telescopic ECU Position Control ECU Assembly (Driver Seat)
  • Tilt and telescopic recall and execution signal
  • Tilt and telescopic recall and end signal
Tilt and Telescopic Switch Multiplex Tilt and Telescopic ECU Tilt and Telescopic Switch signal Direct line
