System Diagram [06/2018 - 08/2021]

WARNING: This page is about a different car, the 2022 Lexus ES 300h, 2021 Lexus ES 300h, 2020 Lexus ES 300h, and 2019 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

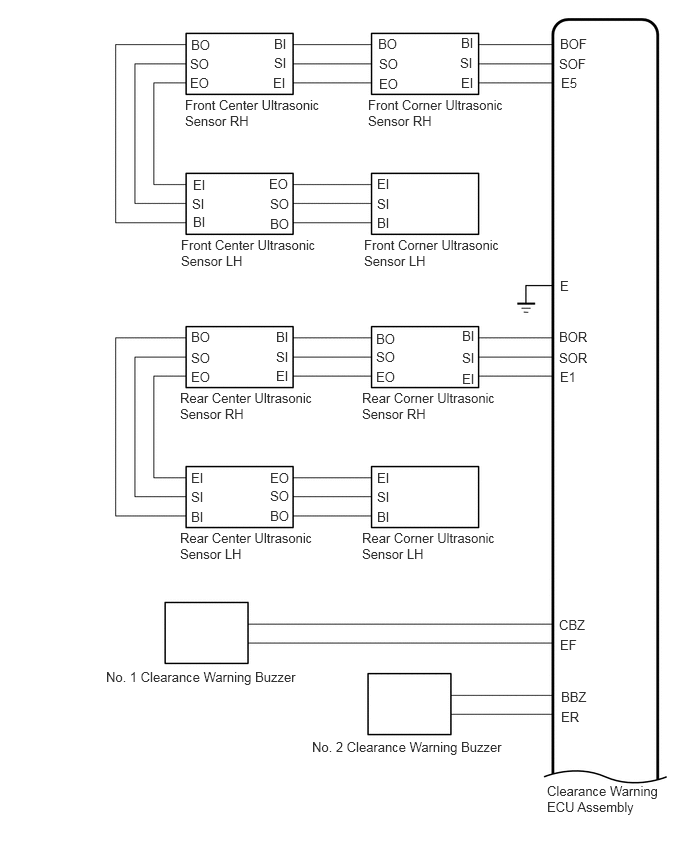

GTY838121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 12.3 inch display w/o Panoramic View Monitor System

GTY791744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY796102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

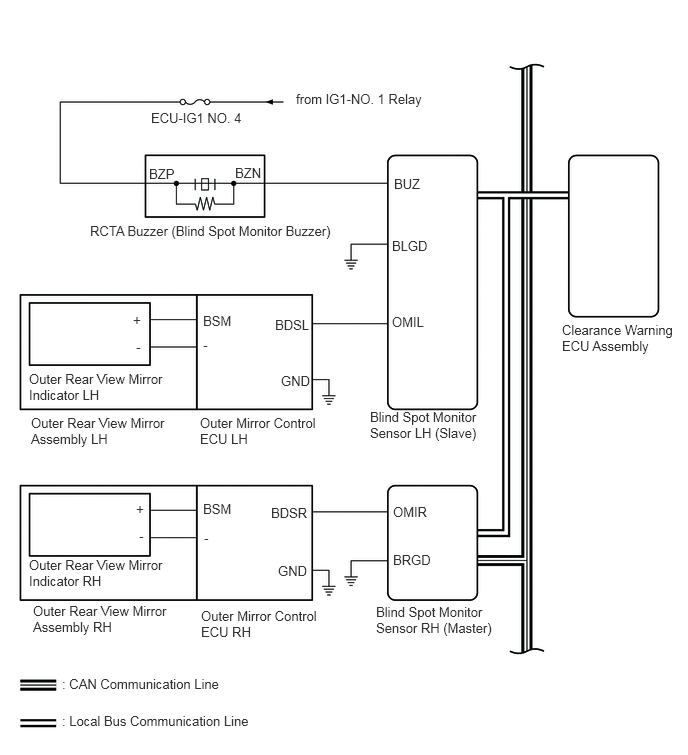

w/ Blind Spot Monitor System

GTY774964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

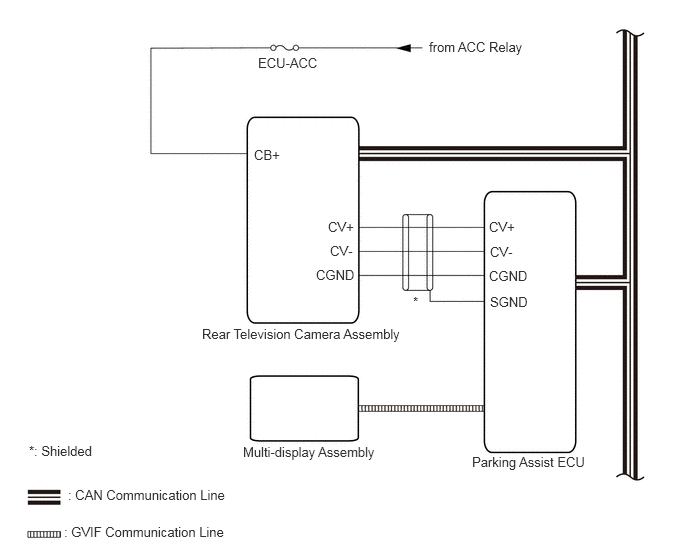

w/ Panoramic View Monitor System

GTY797330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

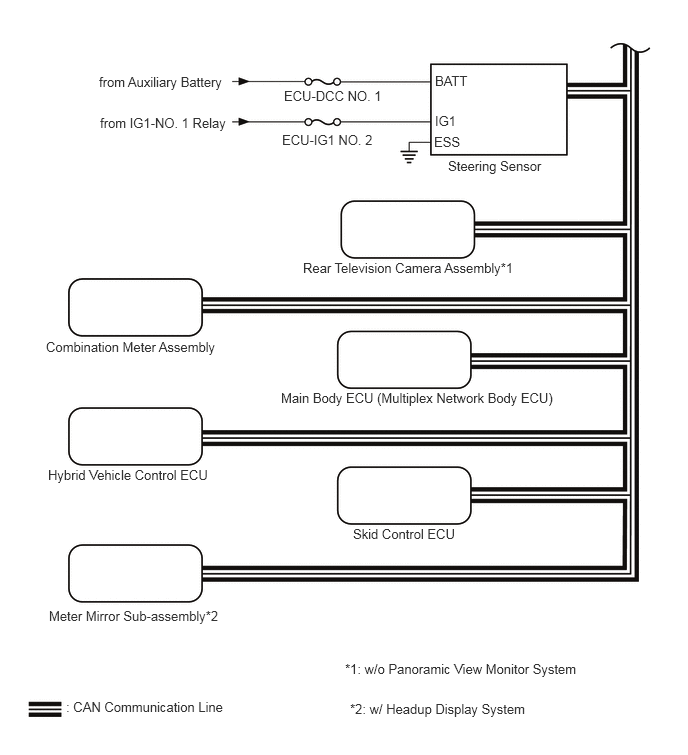

GTY798834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
