Parts Location [06/2018 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Tire Pressure Warning System Component Location (1 of 3) [06/2018 - ]
GTY828342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TIRE PRESSURE WARNING ECU AND RECEIVER *2 TIRE PRESSURE WARNING VALVE AND TRANSMITTER


Fig 1: Tire Pressure Warning System Component Location (2 of 3) [06/2018 - ]
GTY798924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING PAD SWITCH ASSEMBLY *2 COMBINATION METER ASSEMBLY
- TIRE PRESSURE WARNING LIGHT
- MULTI-INFORMATION DISPLAY
*3 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *4 DLC3
*5 SPIRAL CABLE SUB-ASSEMBLY *6 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 4 FUSE
- ECU-B NO. 2 FUSE

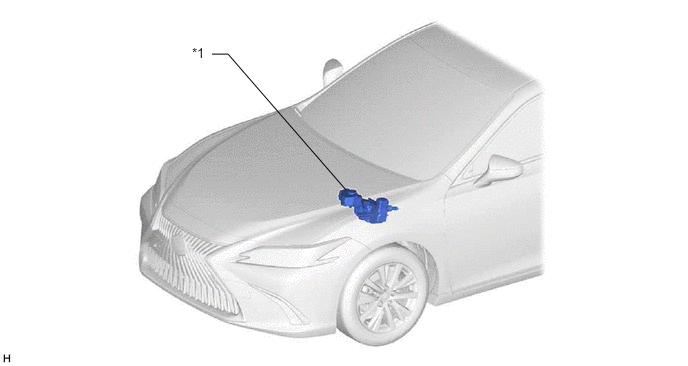

Fig 1: Tire Pressure Warning System Component Location (3 of 3) [06/2018 - ]
GTY806765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) - -
