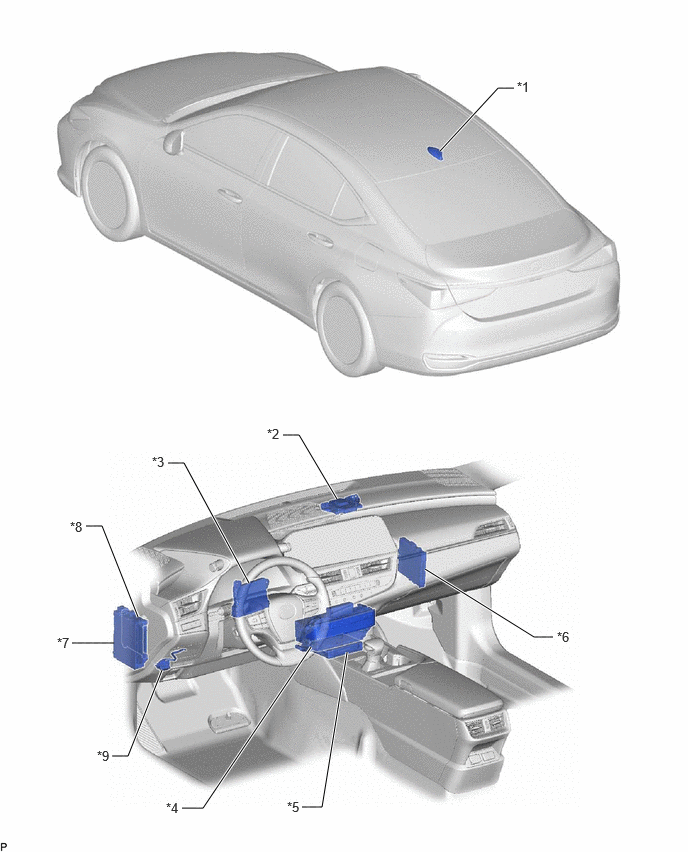

Parts Location [09/2022 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | TELEPHONE AND GPS ANTENNA ASSEMBLY (for Roof Side) - GPS - Telephone Main |
*2 | TELEPHONE AND GPS ANTENNA ASSEMBLY (for Front Side) - Telephone Sub |
| *3 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *4 | RADIO RECEIVER ASSEMBLY |
| *5 | DCM (TELEMATICS TRANSCEIVER) | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DCM FUSE - ECU-IG2 NO. 3 FUSE |
*8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | DLC3 | - | - |
