Parts Location [08/2021 - 09/2022]: Illustration

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

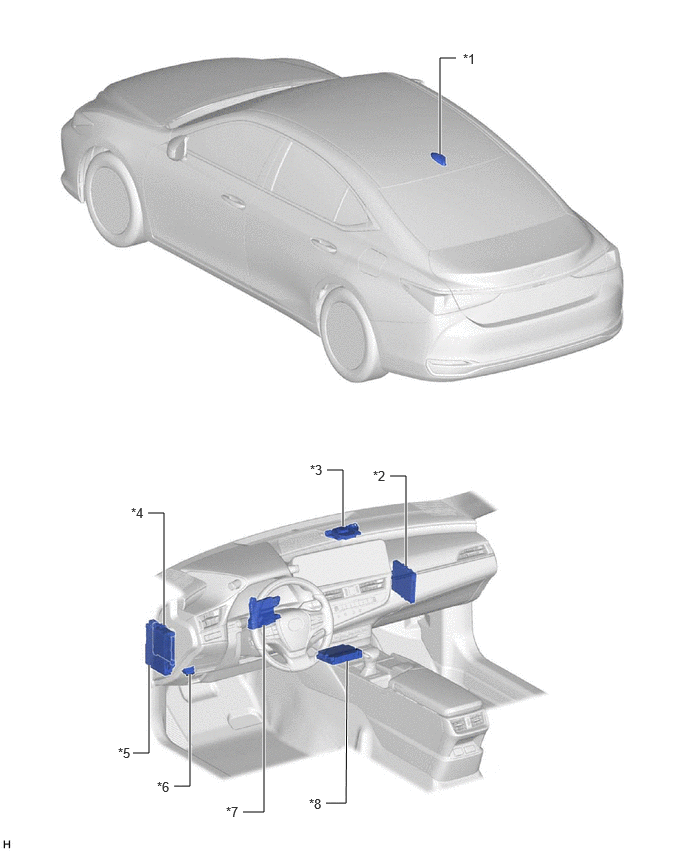

Fig 1: Telematics System Parts Location (Hybrid) [08/2021 - 09/2022]
GTY1087753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ROOF ANTENNA ASSEMBLY
- GPS
- Telephone Main		 *2 CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*3 NAVIGATION ANTENNA ASSEMBLY
- Telephone Sub		 *4 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- DCM FUSE
- ECU-IG2 NO. 3 FUSE		 *6 DLC3
*7 AIR CONDITIONING AMPLIFIER ASSEMBLY *8 DCM (TELEMATICS TRANSCEIVER)
