Parts Location [06/2018 - 10/2019]: Illustration

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

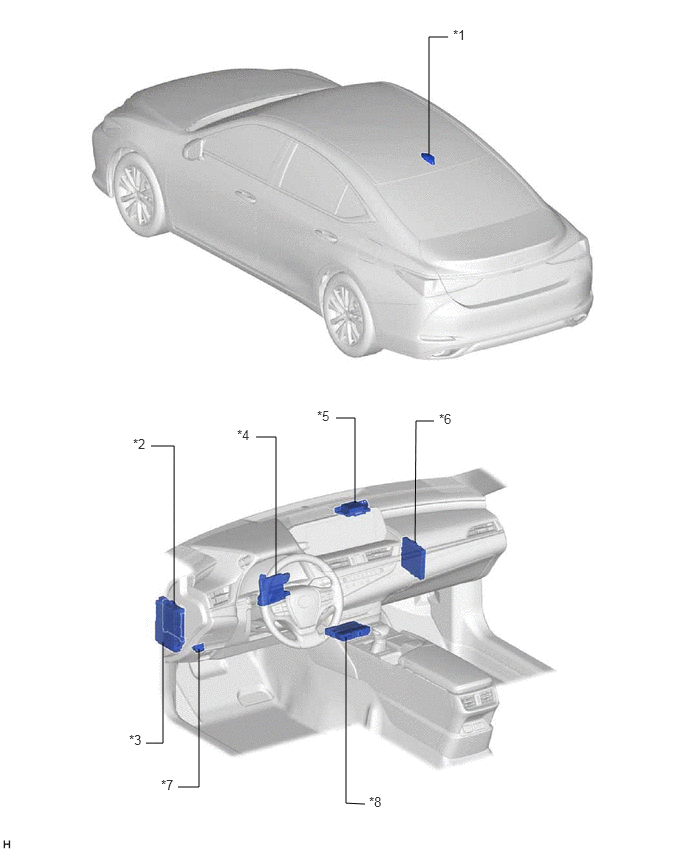

Fig 1: Telematics System Parts Location (Hybrid) [06/2018 - 10/2019]
GTY808187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ROOF ANTENNA ASSEMBLY
- GPS
- Telephone Main		 *2 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- DCM FUSE
- ECU-IG2 NO. 3 FUSE
- ECU-ACC FUSE		 *4 AIR CONDITIONING AMPLIFIER ASSEMBLY
*5 NAVIGATION ANTENNA ASSEMBLY
- Telephone Sub		 *6 CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*7 DLC3 *8 DCM (TELEMATICS TRANSCEIVER)
